    Color Steel Trapezoidal Sheet Roll Forming Machine , Wall Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : shitong
    Model Number : C 780
    Certification : CE/ISO9001
    Price : contact me to get the lowest price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Color Steel Trapezoidal Sheet Roll Forming Machine , Wall Panel Roll Forming Machine

    color steel galvanized metal aluminum glazed trapezoidal corrugated roofing sheet tile wall panel roll forming machine


    Quick Details

    Type: Tile Forming Machine

    Production Capacity: 8-15M/Min

    Power(W): 7.5 Kw

    Certification: Ce Bv Iso Sgs

    Condition: New

    Tile Type: Steel

    Place of Origin: China (Mainland)

    Voltage: 380V Or As Customize

    Dimension(L*W*H): 7500*1700*1600Mm

    Weight: 4.5T

    raw material: ppgi

    feeding width: as customers requirement

    color: Customized

    plc: mitsubishi/delixi/siemens

    profiles: as customers requirement

    thickness: 0.3-0.7mm

    cutting blade material: cr12 with quenched treatment

    After-sales Service Provided: Engineers available to service machinery overseas

    Warranty: 1 Year


    Technical Parameters:

    No.ItemSpecification
    1Can Formed MaterialPPGI,GI,AI
    2Equipment operationAutomatic
    3Voltage380V 60Hz 3Phase or as your requirement
    4Thickness of sheet (mm)0.2-1.5mm or as your customized
    5Material width(mm)As your requirement
    6Cover Width of the sheet after formedAs your drawing
    7The size of the roll forming machine5500mmx800mmx1200mm
    8Speed15-18m/min
    9Diameter of shaft75mm
    10Weight of the Machine4200-4500KGS
    11Material of rollersCr12
    12Motor brandSiemens or Guomao
    13PLCSiemens or Delta or Mitsubushi
    14Total power (kw)6kw
    15Power of hydraulic system3kw
    16Power of main molding core3kw

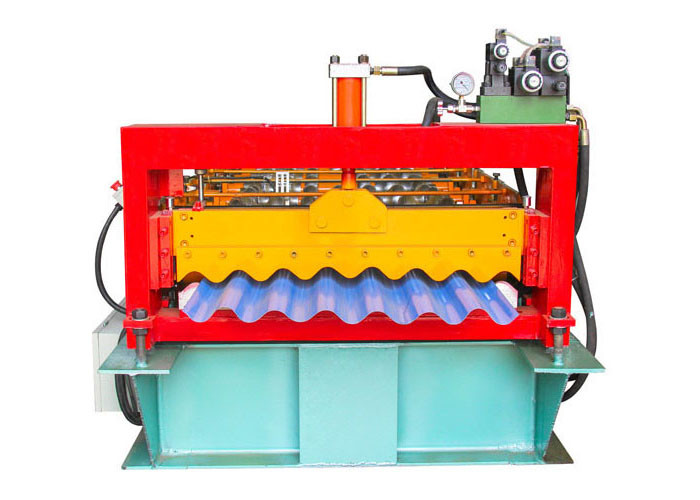

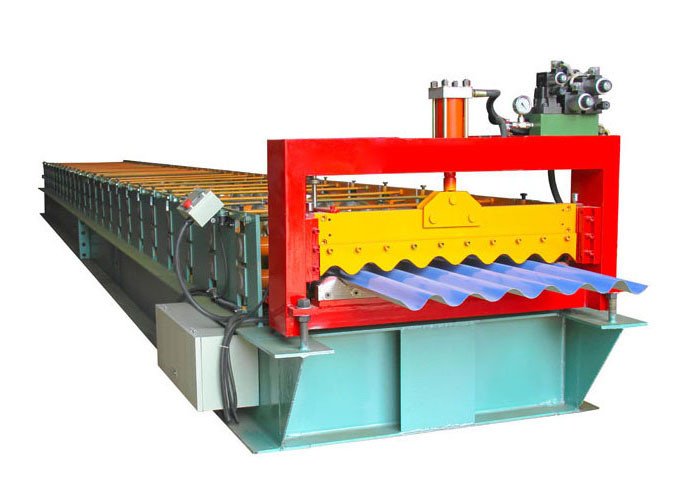

    machine pictures:

    Color Steel Trapezoidal Sheet Roll Forming Machine , Wall Panel Roll Forming MachineColor Steel Trapezoidal Sheet Roll Forming Machine , Wall Panel Roll Forming MachineColor Steel Trapezoidal Sheet Roll Forming Machine , Wall Panel Roll Forming Machine
