High build roofing sheet galzed tile roll forming machine with PLC
automatic program
1. High build roofing sheet galzed tile roll forming machine with
PLC automatic program
The feature looks beautiful, elegant and noble. those are widely
used in building the factory, hotel, and mobile house and so on.
This kind of machine has the best quality and the best price. It
has accurate measurement and easy operating. We can design and
manufacture the special type machine according to the customers'
requirement and we could provide technical guiding, production,
installation, debugging and maintenance service to all customers.
2. High build roofing sheet galzed tile roll forming machine with
PLC automatic program parameters
| Raw material |
| Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| Processing thickness (mm) | 0.3-1.0mm or as your customized |
| Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| Material of shafts | 45# steel |
| Diameter of shafts | 70mm or as your customized |
| Forming speed | 3-4 m/min or as your customized |
| Under frame | 350 H-beam |
| Sidewall | 16mm |
| Connect bar | 25mm, zinc plated |
| Forming steps | 10-18 or as your customized |
| Control system | Delta PLC and Inverter |
| Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| Drive mode | Chain and sprocket, chain size 1 inch |
| Main motor | 3-5.5kw |
| Hydraulic pump station | 3-5.5kw |
| Cutting model | Hydraulic profile cutting |
| Weight of the machine | 3.5 ton -6 ton |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. Our advantage
1. We are a factory with nearly 20 years experiences on Roll
Forming Machines;
2. We have our own research and development team with strong
ability to solve all kinds of problems;
3. We have stable raw material suppliers to ensure the best quality
and on time supplying with low cost;
4. We have more than 20 technicians that can go abroad for the
after-sale service;
5. We have more than 100 kinds and models products for your choice,
you can find the most kind of roll forming machines from us;
6. We have Laser Cutting Machine, CNC Machining Center, Polishing
Line, Painting Line, etc. advanced production equipments to ensure
the quality of each part and the best appearance of our machines;
7. Our machines have reached the International Inspection
Standards;
8. We have got the ISO9001:2008 Certificate and CE Certificate;
9. We are always waiting to serve you 7 days a week and 24 hours a
day.
5. FAQ
1:How to play order: Inquiry---confirm the profile drawings and
price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao
to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the
year of 1998.
4:If you want to get more pictures or videos of the machines,I can
send them to you by Email or SKype.

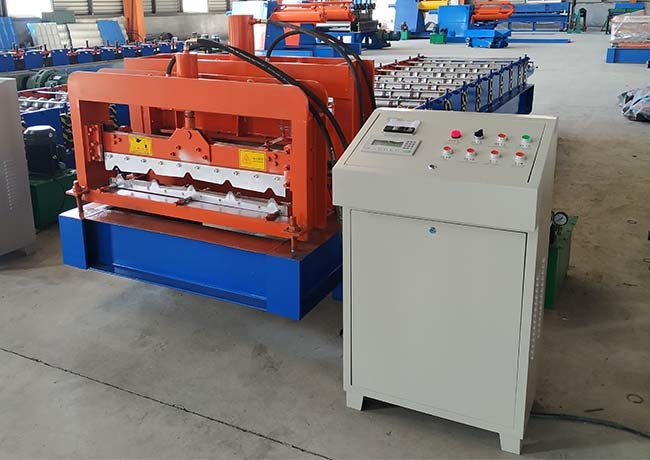

6. Roll forming machine pictures:
