    Coil Width 1000mm Corrugated Sheet Roll Forming Machine For Roof Panel Sheet Making

    Ask Lasest Price
    Brand Name : ST
    Model Number : 1050
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Coil Width 1000mm Corrugated Sheet Roll Forming Machine For Roof Panel Sheet Making

    Coil Width 1000mm Corrugated Sheet Roll Forming Machine For Roof Panel Sheet Making

    1. Coil Width 1000mm Corrugated Sheet Roll Forming Machine For Roof Panel Sheet Making

    Body Structure: Use high strength carbon steel H shape beams

    Digital control: PLC control system, easy to operate.
    We can design the machine to produce any porifles you wanted.
    The length of finished product and the molding speed can be adjusted automatically.
    Applicable materials: cold rolled plate, galvanized sheet, and stainless steel plate.



    2. Technical parameters:

    No

    1

    Suitable MaterialColored Steel plate, Galvanized Board, Aluminum Plate

    2

    Width of the raw material1220mm
    3Effective width1050mm
    4Rows of rollers13 rows
    5Appearance size6.5*1.5*1.5m
    6Total power4 kw
    7Thickness of raw material0.3-0.7mm
    8Productivity15-20m/min
    9Diameter of shaft¢70mm

    10

    Voltage380V 50Hz 3phases


    Roll forming system

    • Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect.
    • The machine Section production and then splicing it
    • Cr12 Heat Treatment,roller surfaces polishing, hard plating .
    • Support structure in the form of roller shaft.
    • All motors use dedicated motor, has excellent mechanical properties.
    • Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping.
    Flow chart:
    Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack

    Product Application

    This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
    The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

    Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
    B. Without visiting, we will send you user manual and video to teach you to install and operate.
    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    3.Company information

    BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.
    The business principal of our factory is "Customer First and Faith Foremost" and what we pursue is to meet the requirements of customers and do better for them. Businessmen from at home and abroad are welcomed to our factory for business talks and work hand in hand for the prosperous future.

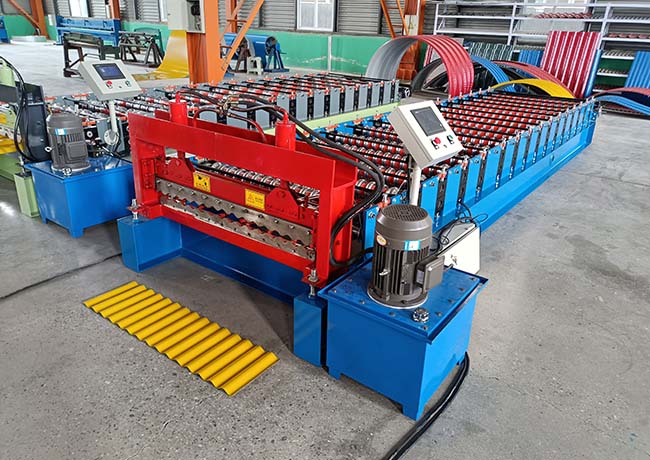

    4 Machine pictures
