    Double Layer Roof Sheet Roll Forming Machine,Glazed Tile Making Machine

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 1060-1000
    Certification : CE/ISO9001
    Price : 14500--18500$
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS/ MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Double Layer Roof Sheet Roll Forming Machine,Glazed Tile Making Machine

    Double Layer Roof Sheet Roll Forming Machine,Glazed Tile Making Machine


    Quick Details

    Type: Tile Forming Machine

    Production Capacity: 0-15m/min

    Power(W): 7.5KW

    Certification: CE/ISO9001

    Condition: New

    Tile Type: Colored Glaze Steel

    Use: Roof

    Place of Origin: hebei, China (Mainland)

    Brand Name: SHITONG

    Model Number: Double layer type

    Voltage: 380V 50Hz 3phases

    Dimension(L*W*H): 10500*1800*1600mm

    Weight: 8 Tons

    Raw materials: Steel

    Color: Blue and yellow

    Warranty: 1 Year

    After-sales Service Provided: Engineers available to service machinery overseas


    Main Features

    1) Material of the profile: GI or color steel
    2) Thickness range: 0.3-0.8mm
    3) Main motor power:7.5kw, AC motor, motor inside of main machine (Brand: Guomao of China) (according the final design)
    4) Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
    5) Roll station: about 18 stations (according the final design)
    6) Roller material:ASTM1045 chrome plated surface with chrome,CNC,
    7) Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
    8) Machine roll forming speed:not less than 15m/min
    9) Transmission: by chain, one inch, single line
    10) Roll former has leveling bolts in the base for adjust the leveling
    11) Machine base frame adopt H beam welding steel
    12) In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
    13) Machine adopt new station to make machine more strong
    14) To avoid accidents,all of drive part adopt protect cover
    15) Color of machine: Blue and yellow (or base on customer request)

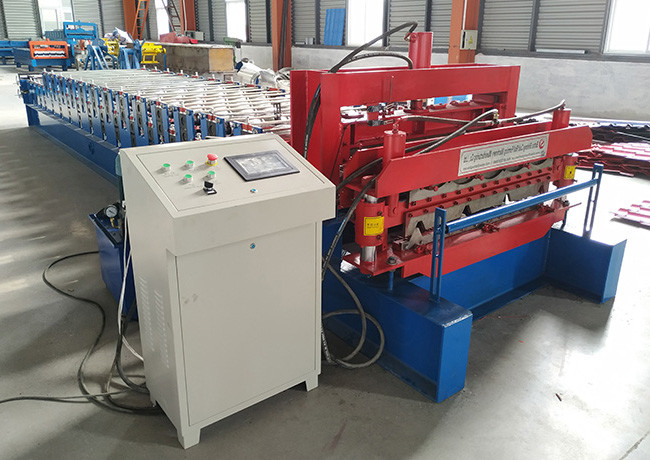

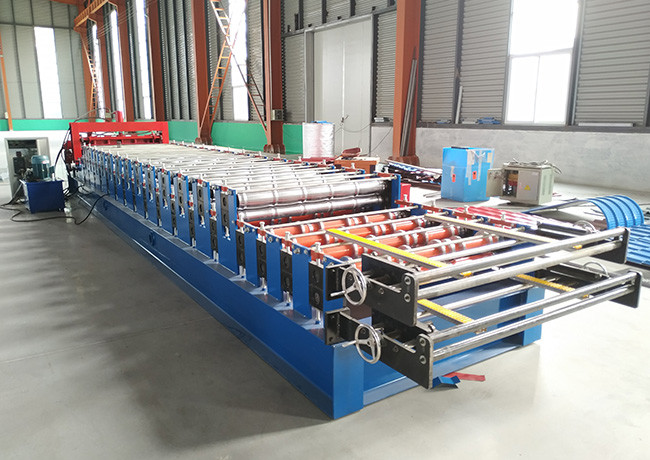

    MACHINE PICTURES:

    Double Layer Roof Sheet Roll Forming Machine,Glazed Tile Making MachineDouble Layer Roof Sheet Roll Forming Machine,Glazed Tile Making MachineDouble Layer Roof Sheet Roll Forming Machine,Glazed Tile Making Machine
