    Two designs of the steel roofing double layer roll forming machine with automatic program

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 762-760
    Certification : CE, ISO 9000
    Price : USD 12000-14000 set
    Payment Terms : T/T, L/C
    Supply Ability : set 20 month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Two designs of the steel roofing double layer roll forming machine with automatic program

    Two designs of the steel roofing double layer roll forming machine with automatic program
    1.Two designs of the steel roofing double layer roll forming machine with automatic program

    ---- High standard production and quality control provide the best machine for customer;

    ---- We are in this industrial many years, we have lots of long time cooperate supplier, they provide us Delta, Siemens, Mitsubishi,Schneider....

    ---- Our machine have the electric motor drive and hydraulic motor drve mood, machine working speed can be 20-25m/min.

    ---- Machine is easy to install, the program have a friendly surface, easy to learn how to operate.


    2. Two designs of the steel roofing double layer roll forming machine with automatic program parameters


    Raw material
    MaterialColored steel sheet, galvanized steel sheet, aluminum sheet
    Thickness of coil sheet0.3-0.8 mm
    Material expand width940 mm/1000mm/1200mm
    Efficiency width762-760 mm/840-910mm/1000-1050mm
    Machine details
    Roller materialHigh grade no. 45 forged steel with 0.05mm hard chrome plating
    Shaft materialHigh grade no. 45 carbon wrought steel
    Cutting bladeCr12 mould steel with quenched treatment
    Diameter of shaft70mm
    Main frame300 H steel
    Forming steps

    Up layer:11 stations

    Down layer:13 stations

    Productivity20-25m/min
    Hydraulic station power5.5kw
    Hydraulic pressure10-12mpa
    Appearance size6500mm*1500mm*1500mm
    Weight4.5 tons
    Hydraulic oil40# hydraulic oil
    Electric tension380v 50 hz 3 phase or as your requirement
    Cut modeHydraulic forming after cutting off
    Cutter materiaCr12 heat treatment
    Electronic control systemPlc, touch screen, encoding counter
    ColorBlue, green or yellow or as your requirement
    Rolling material45# steel,roller surfaces polishing, hard plating

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set


    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


    4. Our service


    Pre-sale Service

    1. Send you invitation letter, If you wanna visit our factory and check the machines.

    2. Good Quality Manufacturer competitive price Quick Response Reliable Service for you.

    Selling Service

    1. Short delivery time after deposit 30-40 days.

    2. Email you the production schedule and make prompt delivery for you.

    3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.

    4. Always be here for your service 12 hours per day.

    After-sale Service

    1. We welcome all feedback about our products and prices and services from our customers.

    2. Any questions, please contact with us freely by E-mail or Telephone.


    5. FAQ (about our roll forming machine)


    1) Can you be responsible for transport?

    Yes, please tell me the destination port or address. we have rich experience in transporting.

    2) How to visit your company?

    Fly to Beiing airport, By high speed train From Beiing Nan to Cangzhou Xi (1 hour).

    Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

    3) Do you have after -sales support?

    Yes, we are happy to provide advice and we also have skilled technicians available across theworld.

    4) Do you sell only standard machines?

    No, most of our machines are built according to customers specifications, using top brand com-ponents.

    5) What will you do if the machine is broken?

    We provide 18 months free warranty and free technical support for the whole life of anymachine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but youneed pay the express cost by yourself. If it is beyond the warranty period, we can negotiate tosolve the problem, and we supply the technical support for the whole life of the equipment.

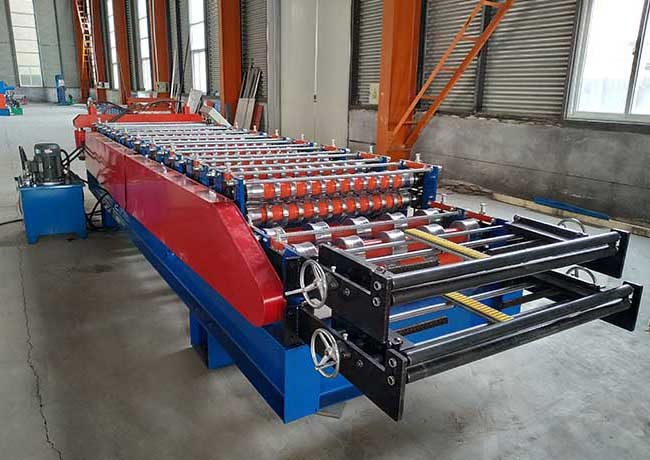

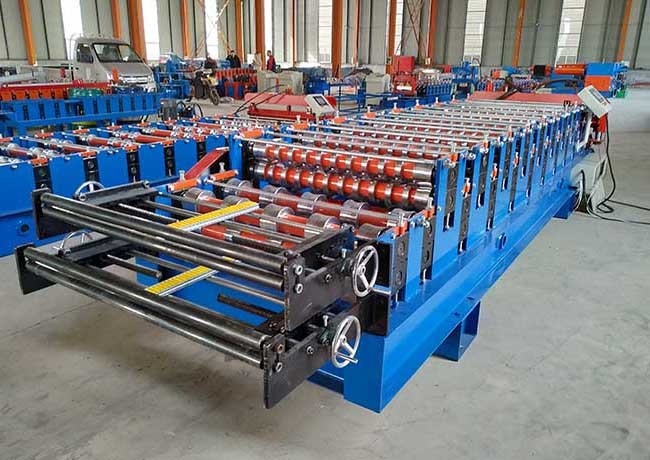

    6.Roll forming machine pictures:

    Two designs of the steel roofing double layer roll forming machine with automatic programTwo designs of the steel roofing double layer roll forming machine with automatic programTwo designs of the steel roofing double layer roll forming machine with automatic program
