    Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine

    Ask Lasest Price
    Brand Name : shitong
    Model Number : C 80-300
    Certification : CE/ISO9001
    Price : 15500$
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine

    Fully Automatic Cold Steel Strip Profile Used C Z Purlin Roll Forming machine


    quick detail:

    Type: Purlin Forming Machine

    Production Capacity: 12-15meter/min

    Certification: CE

    Condition: New

    Tile Type: Steel

    Place of Origin: Hebei, China (Mainland)

    Voltage: 380v 50hz 3 phase

    Dimension(L*W*H): 7.8*1.5*1.3

    After-sales Service Provided: Engineers available to service machinery overseas

    forming speed: 8-15 m/minute

    Diameter of Shaft: 70-90mm

    Controlling system: PLC control

    warranty: one year

    material: prepainted or galvanized steel,aluminum

    Middle plate thick: 12-20mm

    Control system: PLC(imported Brand)


    Product Description
    Hydraulic wring C/Z purlin roll forming machine
    ItemsSpecifications
    Material of coilMaterial Thickness2.5-3mm
    Main frameMaterial400H-beam steel
    Wall platewelded steel plate
    Reducer8# cycloid reducer
    De-coilerWeight3 ton manual decoiler
    Roll Forming systemRolling Speed0-12 m/min
    Roller StationsAbout 14 stations forming
    Roller MaterialGCR15 steel with Hard chromium plated on the surface
    Diameter of shaft80 solid
    Shaft Material45# Steel Diameter 80mm shaft
    Maim Motor Power15 kw
    Hydraulic cutting Power5.5 kw
    CuttingMaterial Of CuttingCR12 with quench treatment
    Tolerance±1mm
    Cutting bladehydraulic shearing
    Electrical control systemElectric Source380V, 50HZ, 3phase
    Control SystemPLC(Delta) with touch screen
    WeightAbout 6 tons
    Way Of DriveBy chain(2.0 inch) link bearing model 6210
    Size of machine8.2m*1.2m*1.2m

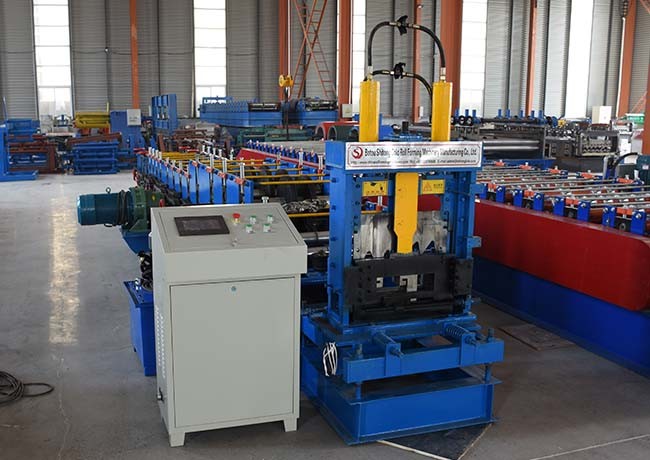

    machine pictures:

    Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making MachineCold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making MachineCold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine
