    Adjustable Size Purlin Roll Forming Machine Forming Steps 12 Rows 40# Hydraulic Oil

    Ask Lasest Price
    Brand Name : ST
    Model Number : 80-300
    Certification : ISO9001 CE
    Price : contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Adjustable Size Purlin Roll Forming Machine Forming Steps 12 Rows 40# Hydraulic Oil

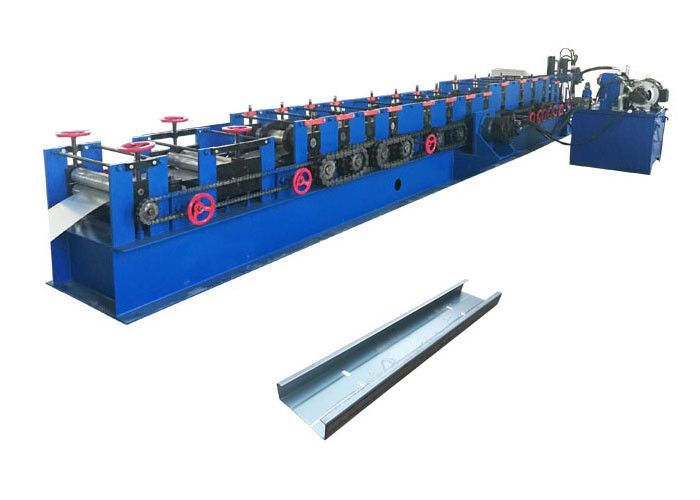

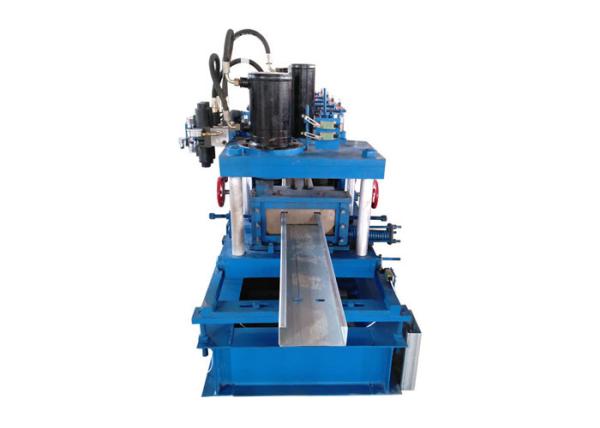

    hot sale adjustable size 80 - 300 mm steel C Purlin Roll Forming Machine


    Equipment Detailed Parameters:

    material specsheet, galvanized steel sheet, aluminum sheet
    roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialHigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft90 mm
    side wall thickness20 mm
    chain size2 inches
    frame350 H steel
    forming steps12 rows
    productivity15-20 m/min
    hydraulic station power22 KW
    hydraulic pressure10-12MPa
    control systemDelta PLC
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size7500mm*1000mm*1500mm
    weight6 tons
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

    FAQ

    1. Q: How does your factory do regarding quality control?
    A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
    2. Q: How can I trust you that machines pasted testing running before shipping?
    A: 1) We record the testing video for your reference
    2) We welcome you visit us and test machine by yourself in our factory.
    3. Q: What about our after-sale service?
    A: we provide technical support on line as well as overseas services by skillful technicians.
    4. Q: What should I do if I just start a new business?
    A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
    5. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
    A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
