    Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton

    Ask Lasest Price
    Brand Name : ST
    Model Number : 80
    Certification : ISO CE
    Price : contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton

    hydraulic fast speed design galvanized U Purlin Roll Forming Machine


    Detail Description

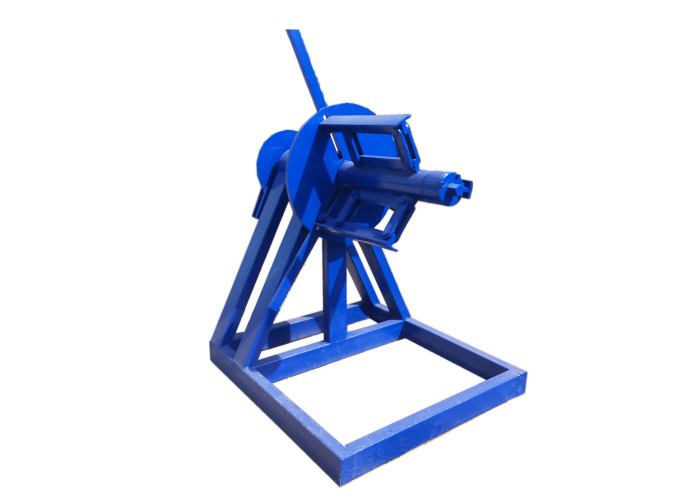

    (1)Tension type decoiler


    ①Functional ConfigurationIt is used to support the steel coil and uncoil it in a turntable way.
    ②technical parameters

    The maximum load capacity 5 Ton

    The coil inside diameter φ500-508mm

    (2) Main machine system
    • Roll forming system

    • Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect.
    • The machine Section production and then splicing it
    • Cr12 Heat Treatment,roller surfaces polishing, hard plating .
    • Support structure in the form of roller shaft.
    • All motors use dedicated motor, has excellent mechanical properties.
    • Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping.
    ②System for forming after cutting off
    • Adopting rolling forming then cut the sheet. No waste here, Cutting knife is made of the Cr12 after quenching.
    • Using combined frame type to cut the machine frame. The characteristics is good maintainability and easy to adjust.
    • Hydraulic stations offer the cutting power.
    • Structural features

    • Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
    • Cut-off tool: Use of high strength wear thicker type mold, it is advantageous to avoid cutting off at deformation

    Advantages:

    In Botou, we are the first to do pressure roll forming machine export business

    ♥ As a manufacturer we are specialized in all kinds of roll forming machine.

    ♥ Good experience of 20 years to make roll forming machine.

    ♥ Good experience for export more then 40 countries.

    ♥ Provide best price,good quality and fast delivery.
