    Galvanized C Channel Roll Forming Machine Fully Automatic Hydraulic Drive Power 22 KW

    Ask Lasest Price
    Brand Name : ST
    Model Number : 80-175
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Galvanized C Channel Roll Forming Machine Fully Automatic Hydraulic Drive Power 22 KW

    fully automatic hydraulic drive galvanized c purlin roll forming machine


    1. Company information


    BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.


    2. Technical parameters:


    Raw material
    material specsheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.5-3mm
    Machine details
    roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialHigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft80mm
    forming steps12 rows
    productivity20-25m/min
    hydraulic station power22 KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size7500mm*1150mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

    Device Configuration

    Nonumber
    (1)Manual decoiler1 set
    (2)Guiding device1 set
    (3)Main roll forming machine1 set
    (4)Hydraulic cutting device1 set
    (5)PLC electric control system1 set
    (6)Hydraulic driving system1 set
    (7)Special tools and parts1 set

    Characteristic


    • Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
    • The main components will stable performance, good reputation, global procurement.
    • Using a number of control technology, automation degree is high.
    • Encoder count, length accurately.

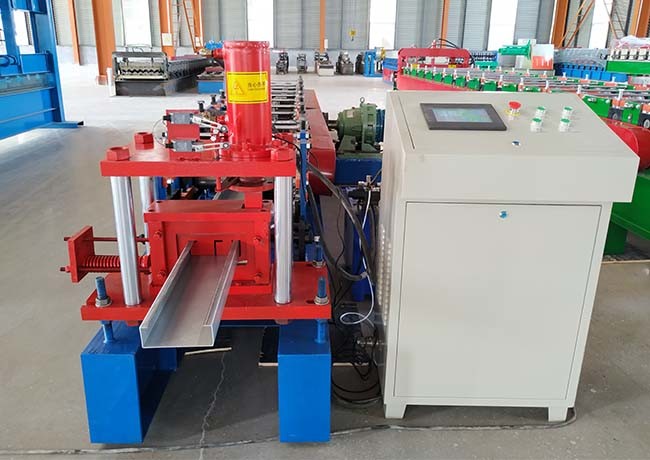

    3. Machine picture
    Galvanized C Channel Roll Forming Machine Fully Automatic Hydraulic Drive Power 22 KWGalvanized C Channel Roll Forming Machine Fully Automatic Hydraulic Drive Power 22 KWGalvanized C Channel Roll Forming Machine Fully Automatic Hydraulic Drive Power 22 KW
    4. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


    5.Our Machine Advantage

    1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

    2. Good service: we provide the technical support for whole life of our machines.

    3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

    4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

    5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

    6. Reasonable price:We offer the best price in our industry.
