    Length 8-11m Purlin Roll Forming Machine Chain Size 1.5-2 Inch With 7 Shafts Flating Device

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 80/300
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Length 8-11m Purlin Roll Forming Machine Chain Size 1.5-2 Inch With 7 Shafts Flating Device

    7 shafts flating device C purlin roll forming machine for industry plant buiding


    1. 7 shafts flating device C purlin roll forming machine for industry plant buiding

    ---- Free technical support and free accessories supply.
    ---- Engineer available to service machinery overseas.
    ---- One year warranty is provided.
    ---- Long life technical guidance for free.

    ---- We always offer technical support, quick response, all your inquire will be replied in 24 hours.

    2. 7 shafts flating device C purlin roll forming machine for industry plant buiding parameters


    Item NameSpecification
    Width of feeding material<1000 mm coil sheet
    Thickness of feeding materialmax 4.0 mm coil sheet
    Roller station8-18 stations
    Shaft Diameter55-95 mm
    Productivity8-15 m/min
    Rollers' materialBearing steel
    Shaft material45# steel
    Weight9 ton
    length8-11 m
    Voltage380V 50Hz 3phases
    ControlPLC
    Decoiler8 tons
    Motor22-30 kw
    Driving wayChain transmission
    Chain size1.5-2 inch
    Cutting systemHydraulic cutter

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles


    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

    4. FAQ(about our roll forming machine)

    1) Does one machine can only produce one size?
    Not exactly, it depends on the machine.
    2) Do you have after sales support?
    Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
    3) How to visit your company?
    We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
    4) What can you do if the machine broken?
    Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
    5) Can you be responsible for transport?
    Yes, please tell us the destination port or address. we have rich experience in transport.

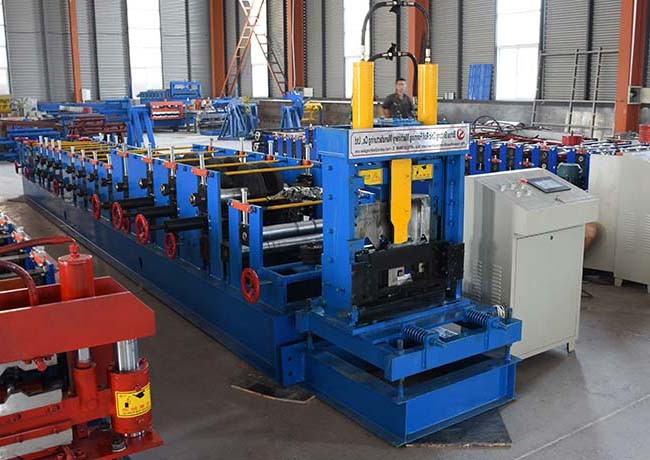

    5. Roll forming machine pictures:
    Length 8-11m Purlin Roll Forming Machine Chain Size 1.5-2 Inch With 7 Shafts Flating DeviceLength 8-11m Purlin Roll Forming Machine Chain Size 1.5-2 Inch With 7 Shafts Flating DeviceLength 8-11m Purlin Roll Forming Machine Chain Size 1.5-2 Inch With 7 Shafts Flating Device
