    Weight 5.4T Glazed Tile Making Machine , Wall Sheet Roll Forming Machine ISO9001 Approved

    galvanized metal roofing and wall double layer roll forming machine


    1. Company information


    BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.


    2. Technical parameters:


    Raw material

    material speccolored steel sheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.2-0.8 mm
    material expand width1250mm

    Machine details

    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm
    main frame350 H steel
    forming steps

    Up layer:11 rows
    Down layer:13rows

    productivity20-25m/min
    hydraulic station power5.5 KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size6700mm*1500mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

    Device Configuration

    Nonumber
    (1)Manual decoiler1 set
    (2)Guiding device1 set
    (3)Main roll forming machine1 set
    (4)Hydraulic cutting device1 set
    (5)PLC electric control system1 set
    (6)Hydraulic driving system1 set
    (7)Special tools and parts1 set
    • Payment Method

    30% as deposit ,balance payment after inspection while before delivery.

    • Production Period

    30 days after the 30% deposit.

    • Packing Method

    Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.

    • After-sell Service

    In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

    • Installation

    If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.

    Position the machine in the buyer’s factory.

    Prepare necessary electric wiring.

    Prepare material of trial running.

    Provide labors for assistance and installation during installation.


    Packaging: Important Components Wiped Anti Rust Oil, Rollers and Shafters covered by foam film, Hydraulic station, PLC control Box, Spare parts and some small parts

    Packed in plywood box. All Components Fixed by steel wire with Container.

    Payment Terms: 30%T/T after signed the contract,balanced before delivery


    Warranty

    1). One year, and we will provide the technical support for the whole life.

    2).Training: the buyer should charge of visa, return ticket, food and accommodation

    overseas and USD50/person/day for salary.

    3). Need one technicians

    4).Training time: one week (contains the time of installation and adjustment)

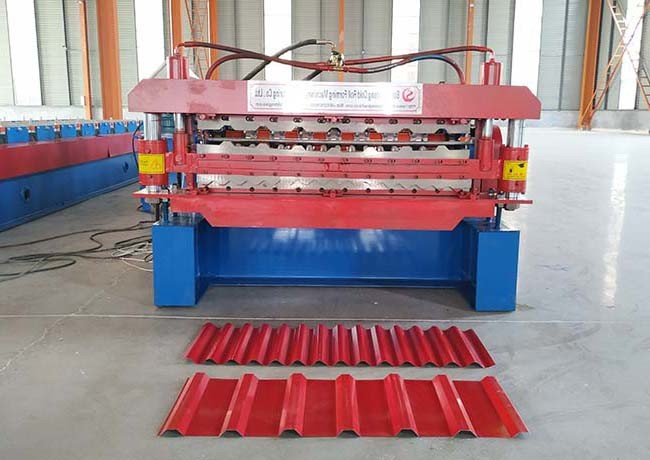

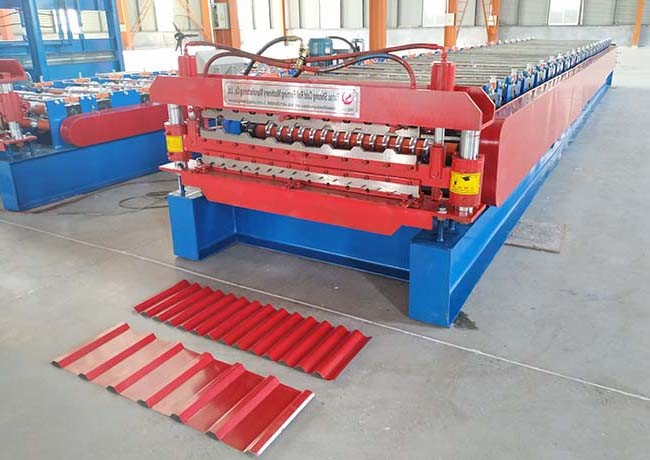

    3. Machine picture

    Weight 5.4T Glazed Tile Making Machine , Wall Sheet Roll Forming Machine ISO9001 ApprovedWeight 5.4T Glazed Tile Making Machine , Wall Sheet Roll Forming Machine ISO9001 ApprovedWeight 5.4T Glazed Tile Making Machine , Wall Sheet Roll Forming Machine ISO9001 Approved


    FAQ

    1. Q: What details of the machine you should get from me.

    A: I will confirm all details with you, such as the voltage in your city.


    2. Q: I am new in this field. How could i understand the machine very well

    A: Why not contact me. I promise you that you will be professional after you get from me. It is true thing.


    3. Q: I receive a lot of quotations, they are big range, How could i choose?

    A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.


    4. Q: Can you give me one suggestion for ordering the machine.

    A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.


    5. Q: I have not whatsapp and skype, how could I contact with you

    A: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.


    6. Q: What do you think what is the most important for roll forming machine

    A: Drawing ! Drawing ! Drawing
