    Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 1050/988
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm

    Hydrulic driving system double layer roll forming machine produce two different profile

    1. Hydrulic driving system double layer roll forming machine produce two different profile


    ---- One machine produce two different steel profiles can save customer's working space and investment.

    ---- We fill two type language in the PLC control system, Chinese and English, if customer have special requriement, we also can customized the language.

    ---- Machine adopted a hydraulic drving motor, machine working speed can be 20m/min.

    ---- We provide Pre-sale service, selling service and after sale service, 100% eliminate customer's worries.


    2. Hydrulic driving system double layer roll forming machine produce two different profile parameters


    Raw material
    MaterialColored steel sheet, galvanized steel sheet, aluminum sheet
    Thickness of coil sheet0.3-0.8 mm
    Material expand width940 mm/1000mm/1200mm
    Efficiency width762-760 mm/840-910mm/1000-1050mm
    Machine details
    Roller materialHigh grade no. 45 forged steel with 0.05mm hard chrome plating
    Shaft materialHigh grade no. 45 carbon wrought steel
    Cutting bladeCr12 mould steel with quenched treatment
    Diameter of shaft70mm
    Main frame300 H steel
    Forming steps

    Up layer:11 stations

    Down layer:13 stations

    Productivity20-25m/min
    Hydraulic station power5.5kw
    Hydraulic pressure10-12mpa
    Appearance size6500mm*1500mm*1500mm
    Weight4.5 tons
    Hydraulic oil40# hydraulic oil
    Electric tension380v 50 hz 3 phase or as your requirement
    Cut modeHydraulic forming after cutting off
    Cutter materiaCr12 heat treatment
    Electronic control systemPlc, touch screen, encoding counter
    ColorBlue, green or yellow or as your requirement
    Rolling material45# steel,roller surfaces polishing, hard plating

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


    4. Business terms:


    Packing Method

    Main machine is packaged with plastic film

    Transportation

    All machines need one 40 feet container to hold

    Payment Term

    30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

    Delivery Time

    Within 35 days after receiving deposit.

    Warranty

    Two years, and we will provide technical support for wholelife of the equipment.

    If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.


    5. FAQ(about our roll forming machine)


    1. Q: How to visit our company:

    A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station

    (1hour), then we can pick up you to factory(40min).

    Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).


    2. Q: What should I provide if I want to customized machine?

    A: U need provide profile drawing, material, thickness, voltage and your special requirements.


    3. Q: What is the Warranty?

    A: Within 12 mounts, all technicals are ready to serve you at any time.


    4. Q: What can you do if the machine broken?

    A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.


    5. Q: If need technician to workshop to debug and teach, how to do?

    A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.

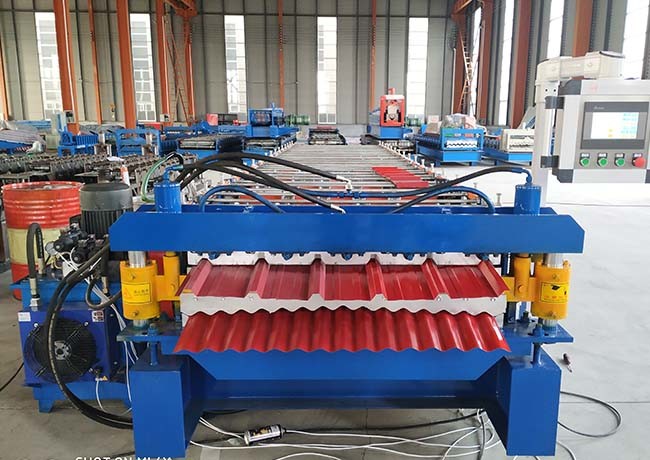

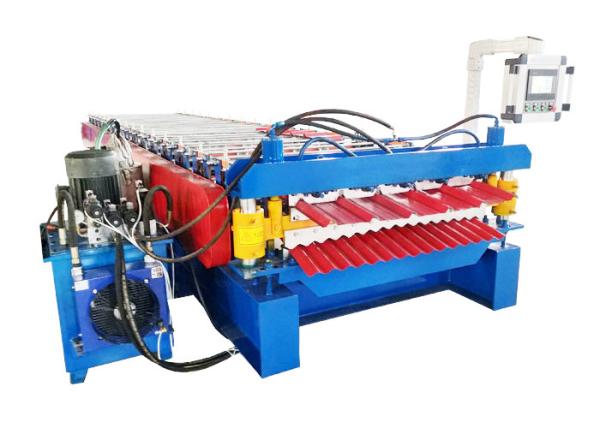

    6. Roll forming machine pictures:

    Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mmHydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mmHydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm
