C 70-175 2mm thickness C shape purlin roll forming machine with
Delta PLC program parameters
1. C 70-175 2mm thickness C shape purlin roll forming machine with
Delta PLC program parameters
---- We are a factory with nearly 20 years experiences on Roll
Forming Machines;
---- We have our own research and development team with strong
ability to solve all kinds of problems;
---- We have stable raw material suppliers to ensure the best
quality and on time supplying with low cost;
---- We have more than 20 technicians that can go abroad for the
after-sale service;
2. C 70-175 2mm thickness C shape purlin roll forming machine with
Delta PLC program parameters
| Item Name | Specification |
| Width of feeding material | <1000 mm coil sheet |
| Thickness of feeding material | max 4.0 mm coil sheet |
| Roller station | 8-18 stations |
| Shaft Diameter | 55-95 mm |
| Productivity | 8-15 m/min |
| Rollers' material | Bearing steel |
| Shaft material | 45# steel |
| Weight | 9 ton |
| length | 8-11 m |
| Voltage | 380V 50Hz 3phases |
| Control | PLC |
| Decoiler | 8 tons |
| Motor | 22-30 kw |
| Driving way | Chain transmission |
| Chain size | 1.5-2 inch |
| Cutting system | Hydraulic cutter |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is
a professional manufacturer and exporter that are concerned with
the design, development and manufactur of cold roll forming
machines. We have high quality professional teams, skillful
talents, strong technical force, strong and independent research
and development capabilities, advanced production equipment and a
perfect after-sales service system.
The company is specialized in manufacturing Color steel forming
machinery, C and Z purling machine, Glazed tile forming machine,
steel structural floor panel roll forming machine, sandwich panel
roll forming machine, highway guardrail forming machine, downspout
forming machine, car panel roll forming machine, roll shutter door
roll forming machine, sheet slitting equipment, and other equipment
accessories.
4. FAQ(about our roll forming machine)
Q1:What is the MOQ?
A:For roll forming machine,the MOQ is one set.
Q2:Could you design the machine for me?
A:Yes,we have professional team of engineers and are able to design
and product roll forming machine as your requestment. Or if you
have own drawings,we can design it as your drawings.
Q3:Are you trading company or factory?Can we visit your factory?
A:We have our own production line and factory.Warmly welcome to our
factory. Once we have your schedule, we will arrange the
professional sales team to follow up your case.
Q4: What's your after-sale service?
A: We'll provide engineer overseas service to help you install and
debug the machine,in addition,free replacement of parts in one year
warranty.
Q5: How is your Payment Term?
A:T/T,L/C ,Western Union

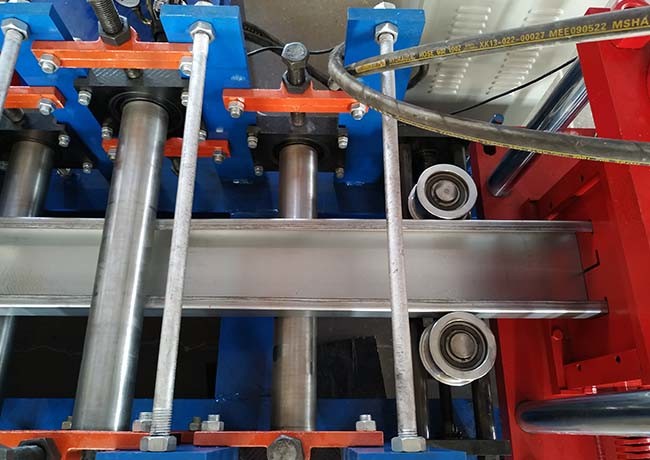

5. Roll forming machine pictures:
