Customized c shape purlin steel profile cold roll forming machine
with perforations production line
1. Instruction of the roll forming machine production line
Our products are widely used in various industrial factory,
civilian building, warehouse and easy steel building manufacturing,
and have features such as nice appearance and durable.
Our roll forming machine can be profile custom,and are lower
cost,high efficiency,reliable working ,low energy consumption.we
can do any type of equipment according to customer requirements.
The components that each set machine includes:
| Roll forming machine | 1 set |
| Hydraulic cutter | 1 set |
| Electrical control system | 1 set |
| Hydraulic system | 1 set |
| Normal run out table | 3 PC 1m*1m |
| Manual de-coiler | 1 set Max. loading 5 T |
2. The roll forming machine parameters
| Description |
| Product Name | C Purlin Rool Forming Machine |
| Machine Size | 8000mm*1600mm*1800mm |
| Machine Weight | About 8 T |
| Frame Materials | 350H steel |
| Forming Shaft | Diameter | 80mm |
| Material | 45# quenched and tempered material |
| Forming roller | 45# Forging Hard Chrome Plating |
| Cutting System | Hydraulic Cutting |
| Main Engine power | 22 KW with cycloidal reducer |
| Forming Rows | 16 rows |
| Forming Speed | 8-12m/min |
| Pressing Thickness | 1-3mm |
| Effective Width | 80mm--300mm |
| Pressing width | 1000mm |
| Electric Control System | SIEMENS/ Schneider |
| Pump Station Motor | 15 KW |
| Transducer | SIEMENS |
| Coder | Wuxi "rip" or "Xin Ya" |
| Switch | " CHINT "or" delixi" |
3. Who we are and what we do
We manufacture wide range products of metal sheet cold roll
forming machine as follows: color steel roll forming machine,
glazed tile roll forming machine, C/Z/U purlin machine for light
steel structure building, floor deck machine, sandwich panel
production line, fast guardrail forming machine, ridge cap forming
machine and other automatic cold bending roll forming equipment.
Our export team will listen to your request; the designed team will
show you the best proposal according to your request, and we also
have experts skilled workers offer precision work. Satisfactory
solutions were provided to customers and established a long-term
strategic partnership.
4. Our after sales service
(1) Once you paid the deposit, we will start the production as soon
as possible. When the machine is finished, you can come to check
the machine, we will arrange your accommodation and relative
schedule. If you don't come, we can test the machine and send you
test video. It's no problem.
(2) Our machines have one year guarantee, within one year, if the
machine parts has some problem, we will be in charge of the
repairing or replace. Also we will deliver the customer some spare
parts together with the machine when loading the machine.

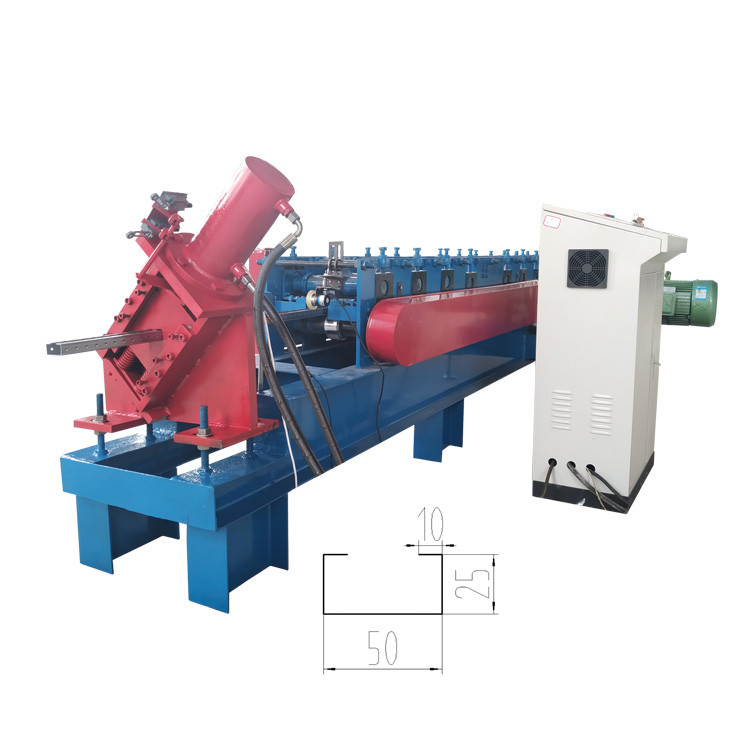

5. Roll forming machine pictures:
6. FAQ
6.1:- About the after service, if the machine has problem out of
guarantee?
- All the machines are one guaranteed, life maintenance. It means
if you order our machine, you will be our customer for lifetime,
you can ask us anytime about the machine issues.
6.2:- Can you make the machine according to my design or photo type?
-Yes. We have an experienced team for working out the most suitable
design and production plan for the machine that you are going to
book with us.
6.3:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together
with the machine.
