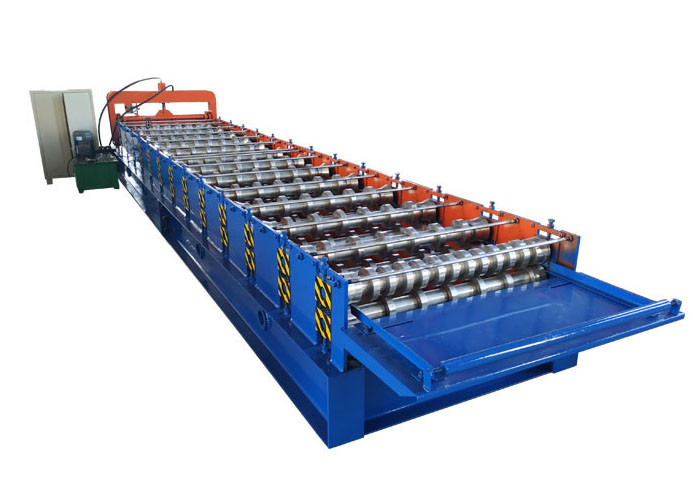

    Hydraulic Drive Metal Roof Roll Forming Machine

    Ask Lasest Price
    Brand Name : ST
    Model Number : 750
    Certification : ISO CE
    Price : contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Hydraulic Drive Metal Roof Roll Forming Machine

    color steel corrugated roofing Sheet Metal Roll Forming Machines hydraulic drive


    Equipment technical parameters


    Machine Feature:

    1. Precise forming

    2. High-solid forming stand guarantees the goods and uniform high quality of final productd

    3. The operation automatically minimizes the tolerance of cutting length


    Products Feature:

    1. A stylish and attractive design, giving the apperance of a traditional roof tile.

    2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

    3. The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.

    Main parameter of Corrugated Iron Roofing Sheet Double Layer Roll Forming Making Machine Made in China
    No.main parameter of Corrugated Iron Roofing Sheet Double Layer Roll Forming Making Machine Made in China
    1Suitable to processColor steel plate
    2Width of the plate1250mm
    3Rollers

    12 rows

    4Dimensions7.2*1.55*1.51m
    5Power4 4kw
    6Thickness of the plate0.3-0.6mm
    7Productivity8-10m/min
    8Material of the cutting bladeCr12
    9Diameter of the rollerΦ70mm
    10WeightAbout 5.8T
    11Voltage380V 50Hz 3phases
    15Control systemPLC control

    Hydraulic shearing


    Material of bladeCr12,heat treatment 60-62°C
    Shearing system

    It is controlled by gear wheel oil pump. After

    filling the hydraulic oil into the hydraulic oil tank,

    the pumps drive the cutter machine to begin the

    cutting job.

    The system includes a set of hydraulic tank, a

    set of hydraulic oil pump, two hydraulic pipes.

    And two sets of electromagnetism valves.

    Power of the oil pump: 3kw

    Hydraulic oil :40#


    Electrical system


    Main computer control cabinet

    It adopts industrial computer to control. The target piece’s

    length is adjustable and digit of it can be adjusted. Computer

    mode has two modes: automatic and manual one. The system

    is easy to operate and use.

    Processing precision : within 1.00mm

    It contains liquid crystal screen, programmer, transformer

    for the electronic machines and kits of every part.

    Transducer brand is EURA.

    The seller will provide Chinese and English language screen.

    Hydraulic Drive Metal Roof Roll Forming MachineHydraulic Drive Metal Roof Roll Forming MachineHydraulic Drive Metal Roof Roll Forming Machine
