    Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine

    Ask Lasest Price
    Brand Name : ST
    Model Number : 840
    Certification : ISO CE
    Price : contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 stes per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

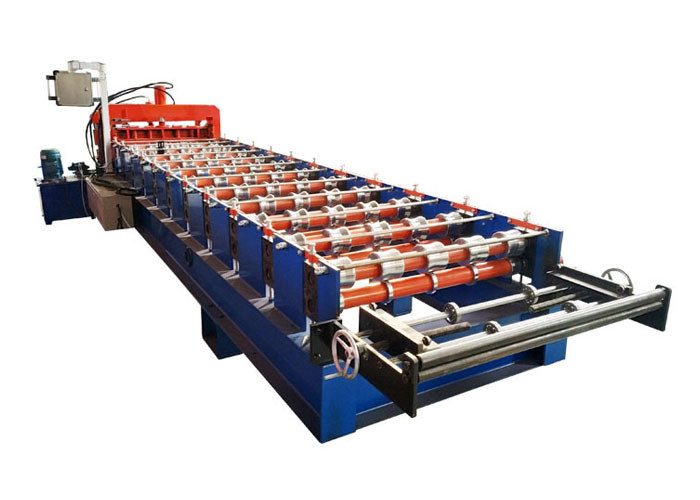

    Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine

    profiled galvanized aluminum color steel Glazed Tile Roll Forming Machine


    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr 12 mould steel with quenched treatment
    appearance size7500mm*1000mm*1500mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements

    Components and Technical Specification

    Technical Specification

    Main Roll Forming Machine


    Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

    Shearing Mechanism


    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

    Material of blades: Cr12,quenching treatment

    Hydraulic System


    Power:4kw,Hydraulic oil: 40#

    Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

    Computer Control Cabinet


    The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The PLC system is easy to operate and use.

    Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming MachineProfiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine

    Our main products include

    Villa Keel Roll Forming MachineStud and Track Keel Roll Forming Machine
    Omega Profiles Keel Roll Forming MachineProfiles Bending Roll Forming Machine
    Ceiling Keel Roll Forming MachineDouble Layer Roofing Tile Roll Forming Machine
    Metal Roofing Roll Forming MachineFloor Deck Roll Forming Machine
    C-Purlin Forming MachineLight Steel Forming Machine
    Ridge Tile Forming MachineBending Machine
    Container houseShearing Machine

    1. Design: architecture, Interior decoration, structural and landscape design.

    2. Manufacture: roof truss, external & internal wall stud, floor deck, staircase, etc.

    3. Customization: we can manufacture different machines to fit various requirements from different customers.
