    Roofing sheet metal roll forming machine for color roof making any length

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 20-200-1000
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Roofing sheet metal roll forming machine for color roof making any length

    Roofing sheet metal roll forming machine for color roof making any length​
    1. Roofing sheet metal roll forming machine for color roof making any length
    ---- Popular electric parts will be adopted in this machine.
    ---- This machine have a hydraulic cutter, which can provide stablely cutting function.
    ---- Computer program can control the machine working in automaticly.
    ---- We provide after sale service in guarantee.
    2. Roofing sheet metal roll forming machine for color roof making any length parameters

    Raw material
    materialmetal
    thickness of coil sheet0.3-0.8 mm
    material expand width914mm/1000mm/1200mm/1220mm/1250mm
    Efficiency width695mm/750mm/1000mm/1050mm
    Machine details
    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm
    main frame300-400mm H steel
    forming steps15 stations
    productivity8-12 m/min
    hydraulic station power4 KW
    hydraulic pressure10-12MPa
    appearance size6700mm*1500mm*1500mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirement
    Cut ModeHydraulic forming after cutting off
    Cutter materiaCr12 Heat Treatment
    Electronic control systemPLC, Touch Screen, Encoding counter
    ColorBlue, green or yellow or as your requirement
    Rolling material45# steel,roller surfaces polishing, hard plating
    Service life10 years

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. Shitong cold roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
    4. FAQ (about our roll forming machine)

    1.Does one machine can only produce one style panel profile?
    Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
    2. Do you have after sales support?
    Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
    3. How to visit your company?
    A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
    B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.

    4. Can you be responsible for transport?
    Yes, please tell me the destination port or address.we have rich experience in transport.

    5. Why your price is higher than others?
    As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
    6. How long the machine could be made?
    Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

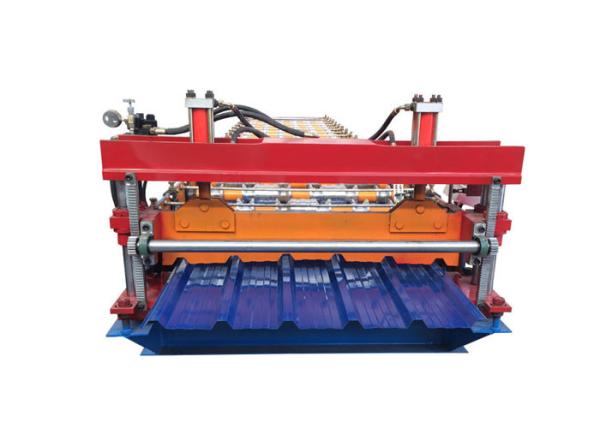

    5. Roll forming machine pictures:

    Roofing sheet metal roll forming machine for color roof making any lengthRoofing sheet metal roll forming machine for color roof making any length
