    roofing sheet profile crimping curving arch roll forming machine

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 1000
    Certification : CE/ISO9001
    Price : 11500$
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS/ MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    roofing sheet profile crimping curving arch roll forming machine

    roofing sheet profile crimping curving arch roll forming machine


    Quick Details

    Warranty: 2 Years

    Type: Tile Forming Machine

    Production Capacity: 2m/min

    Certification: CE/ISO9001

    Applicable Industries: Building Material Shops

    Condition: New

    Tile Type: Colored Steel

    Use: Roof

    Place of Origin: Hebei, China (Mainland)

    Brand Name: shitong

    Voltage: 380V 50Hz 3phases

    Dimension(L*W*H): 8500*1300*1100

    Weight: 4.2T

    After-sales Service Provided: Engineers available to service machinery overseas

    coil type: PPGI, Galvanized sheet

    coil width: 914 1000 1220 1250mm

    coil thickness: 0.3-0.8mm

    shaft material: 45#steel-high quality steel, diameter 70 mm

    roller material: 45# steel with chrome coating

    roller station: 15(depends on final design)

    Main frame: 350 H steel

    board thickness: 16mm

    control system: PLC control system(brand as requirement)


    Main parameter:


    technical parameter of IBR and corrugated roofing sheet profile crimp curving machine
    Coil material
    type
    PPGI/Galvanized sheet
    width
    914/1000/1220/1250mm (according to customer requirements and profile drawing)
    thickness
    0.3-0.8mm
    Forming device
    shaft material
    45#steel-high quality steel, diameter 70 mm
    roller material
    45# steel with chrome coating
    roller station
    15 (depends on final design)
    Main frame
    350 H steel
    board thickness
    16mm
    weight
    around 1.2T(depends on final design)
    dimension
    2500mm*1300mm*1100mm(depends on final design)
    Control system
    PLC control system(brand as requirement)
    Total power
    3+3kw (depends on final design)
    Voltage
    380V,50HZ,3 phascs or as your need
    Productivity
    2m/min(depends on final design)

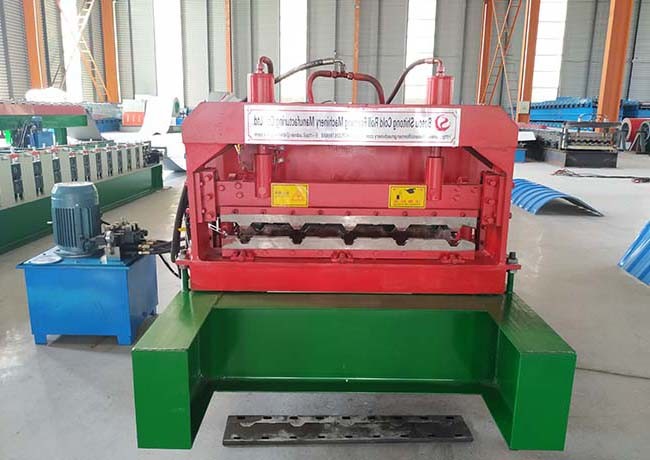

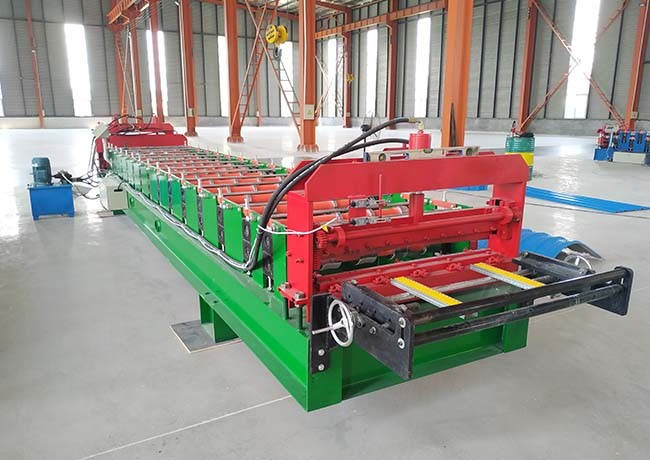

    machine pictures:

    roofing sheet profile crimping curving arch roll forming machineroofing sheet profile crimping curving arch roll forming machineroofing sheet profile crimping curving arch roll forming machine
