    Long Service Life Sheet Metal Roll Forming Machine With High Strength Steel Frame

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 20-210-840
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Long Service Life Sheet Metal Roll Forming Machine With High Strength Steel Frame

    Long Service Life Sheet Metal Roll Forming Machine With High Strength Steel Frame


    1. Long use life sheet matal roll forming machine with high strength steel frame
    ---- This machine adopt high strength GB standard steel frame, ensure machine have strong enough frame.
    ---- The rollers are after heat treatment, ensure machine have a long lifetime.
    ---- We cooperate with all the famous electric parts supplier, ensure machine electric system quality.
    ---- We provide all extra free easy broken part with new machine.


    2. Long use life sheet matal roll forming machine with high strength steel frame parameters

    Raw material
    materialPPGI, PPGL, GI, Steel, Aluiminum
    thickness of coil sheet0.3 to 0.8 mm
    material expand width914mm/1000mm/1200mm/1220mm/1250mm
    Efficiency width695mm/750mm/1000mm/1050mm
    Machine details
    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm
    main frame300-400mm H steel
    forming steps15 stations
    productivity8-12 m/min
    hydraulic station power4 KW
    hydraulic pressure10-12MPa
    appearance size6700mm*1500mm*1500mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirement
    Cut ModeHydraulic forming after cutting off
    Cutter materiaCr12 Heat Treatment
    Electronic control systemPLC, Touch Screen, Encoding counter
    ColorBlue, green or yellow or as your requirement
    Rolling material45# steel,roller surfaces polishing, hard plating
    Service life10 years

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. Shitong cold roll forming machine company profiles
    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

    4. FAQ (about our roll forming machine)

    Does one machine can only produce one style panel profile?
    Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
    2. Do you have after sales support?
    Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
    3. How to visit your company?
    A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
    B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
    4. What can you do if the machine broken?
    Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
    5. Can you be responsible for transport?
    Yes, please tell me the destination port or address.we have rich experience in transport.
    6. You are Trade Company or factory?
    We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.

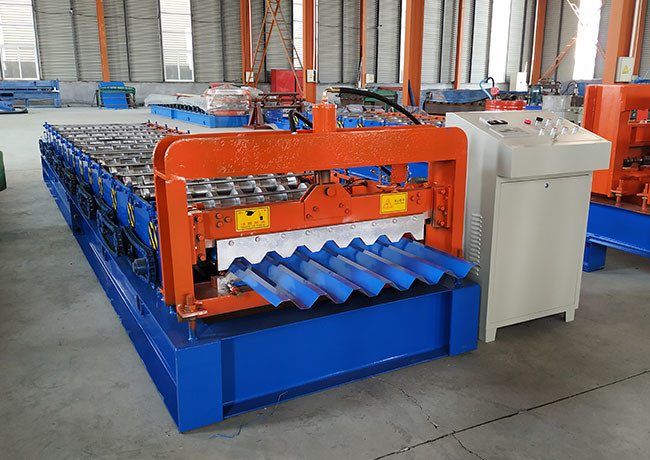

    5. Roll forming machine pictures:
    Long Service Life Sheet Metal Roll Forming Machine With High Strength Steel FrameLong Service Life Sheet Metal Roll Forming Machine With High Strength Steel FrameLong Service Life Sheet Metal Roll Forming Machine With High Strength Steel Frame
