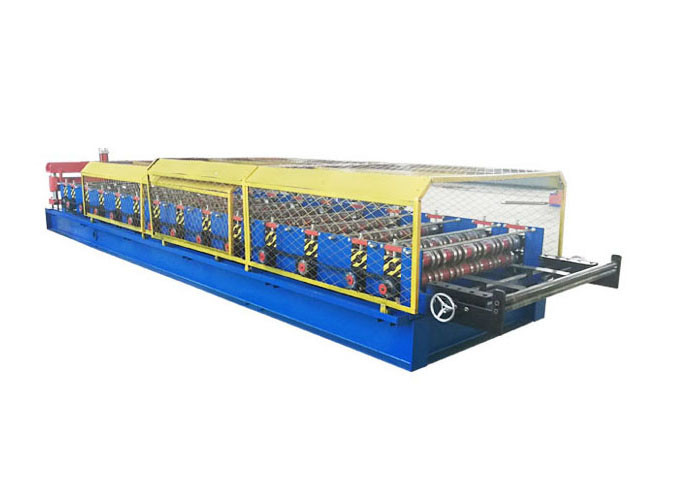

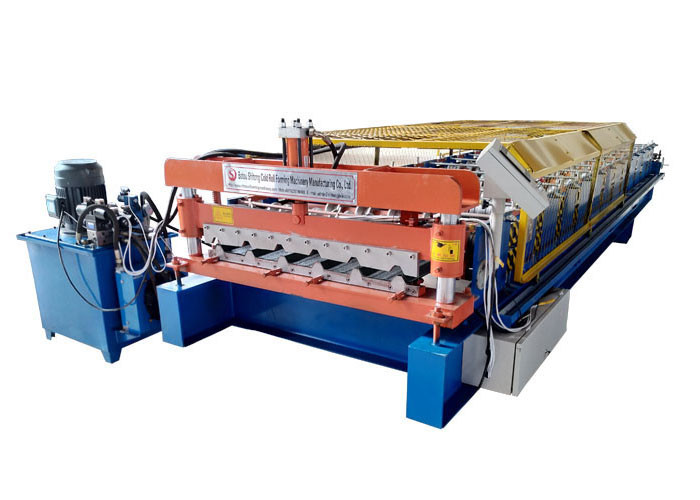

    High quality single layer 6 ribs roof Sheet Metal Roll Forming Machines

    Ask Lasest Price
    Brand Name : ST
    Model Number : 1060
    Certification : ISO CE
    Price : contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    High quality single layer 6 ribs roof Sheet Metal Roll Forming Machines

    High quality single layer 6 ribs roof Sheet Metal Roll Forming Machines


    Product Description
    Building material steel roofing sheet roll forming machine machinery
    Suitable raw materialPPGI/PPGL/GI/GL Steel Coils
    Thickness of coil sheet0.3-0.8mm
    Feeding Coil width1250mm
    Effective width1060mm
    Under frame350H-beam
    Diameter of Soild shaft70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
    Roller

    High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

    hard chrome coated 0.05-0.07mm

    Thickness of middle plate16mm
    Forming stations16
    Drive typeBy chain(1.0 inch) link bearing model 6210
    Power of main motor5.5kw with Cycloidal reducer, Lichao, Shanghai
    Power of pump station4kw, Lichao, Shanghai
    Forming speedAbout 15-20m/min
    Hydraulic cuttingControlled by PLC
    PLCDELTA, TAIWAN / Mitsubishi, Japan
    Material of cutting blade

    Cr12Mov, quenching 58-62℃


    High quality single layer 6 ribs roof Sheet Metal Roll Forming MachinesHigh quality single layer 6 ribs roof Sheet Metal Roll Forming MachinesHigh quality single layer 6 ribs roof Sheet Metal Roll Forming Machines

    FAQ
    1.Q: Are you manufacturer or trading company?
    A: We are manufacture and trading company.
    2.Q:What info you need before you make the proposal?
    A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
    3.Q: what is the MOQ?
    A: One set
    4.Q: Do you provide installing and debugging overseas?
    A: Overseas machine install and worker training services are optional.
    5.Q: Can you make the machine according to my design or prototype?
    A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
    6.Q: How does your factory do regarding quality control?
    A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
    7.Q: How can I trust you that machines pasted testing running before shipping?
    A: 1) We record the testing video for your reference
    2) We welcome you visit us and test machine by yourself in our factory.
    8.Q: What about our after-sale service?
    A: we provide technical support on line as well as overseas services by skillful technicians.
    9.Q: What should I do if I just start a new business?
    A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
    10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
    A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
