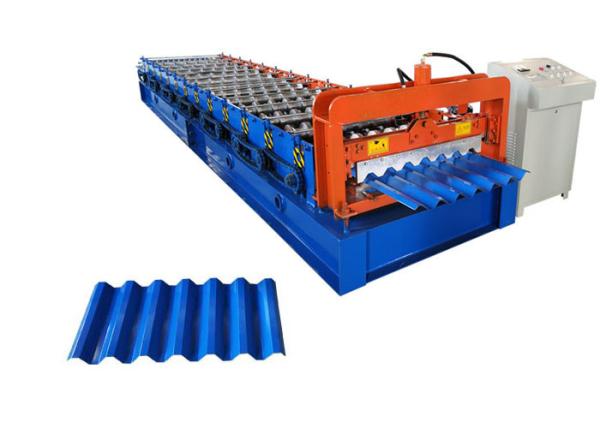

    new type profiled aluminum cold steel Sheet Metal Roll Forming Machines

    Ask Lasest Price
    Brand Name : ST
    Model Number : 750
    Certification : ISO CE
    Price : contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    new type profiled aluminum cold steel Sheet Metal Roll Forming Machines

    new type profiled aluminum cold steel Sheet Metal Roll Forming Machines


    Parameter

    Raw material
    materialcolored steel sheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.2-0.8 mm
    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm
    main frame300 H steel
    Side plate thickness16 mm
    Chain size1 inch
    forming steps15 stations
    productivity20-25m/min
    hydraulic station power4 KW
    hydraulic pressure10-12MPa
    appearance size5700mm*1500mm*1500mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirement
    Cut ModeHydraulic Guide Column
    Cutter materiaCr12 Heat Treatment
    Electronic control systemPLC (Delta) Touch Screen
    ColorBlue and orange

    FAQ

    1.Q:How to maintain the machine?

    A:Add mechanical lubricating oil to the chains,bearings and sliding track of cutting

    device every month.Add mechanical lubricating oil to the reduction box every half a year.


    2.Q:What is your machine's working life?

    A:In the normal maintenance,using 10 years is no problem.


    3.Q:What should I do if the machine is broken?

    A:We will post you new spare parts instead of broken parts free of charge within warranty period 12 months.If you need us repair the machine,we can send our technician there serve for you,but your side should bear the costs.We provide the technical support for the whole lifetime.


    4.Q:Could you make the machine according to my design drawing or sample?

    A: Yes,we are specialized in designing and manufacturing special profile roll forming

    machine.Our engineer has over 10 years' experience in this field.


    5.Q:How many workers to operate the machine?

    A:Only 1-2 workers.


    6.Q:What is your payment terms?

    Usually our payment terms is T/T,30% deposit in advance,the balance is paid after inspecting

    the machine you ordered.L/C is also acceptable for some countries.


    7.Q:Are you responsible for the transport?

    A:Yes,we can deliver the machine to the port you appointed of your country.We have rich

    experience on transport.


    8.Q:Could you supply the raw materials?

    A:Yes,we can supply the PPGI coil,galvanized steel coil and aluminum coil.
