    Aluminium Profile Sheet Metal Roll Forming Machines Cutter Material Cr12 Heat Treatment

    Ask Lasest Price
    Brand Name : ST
    Model Number : 1000
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Aluminium Profile Sheet Metal Roll Forming Machines Cutter Material Cr12 Heat Treatment

    profile sheet metal roll forming machine for aluminium roofing china manufacturer

    1. Company information

    We manufacture wide range products of metal sheet cold roll forming machines as follows: 1) for Metal Building Industry/PEB (Pre-Engineering Building): HAYES style quick change CZ purlin machine(including automatic and quick-change type C purlin machine and Z purlin machine), light gauge steel framing machine(LGSF, Howick and SCOTTSDALE style), roof panel forming machine, corrugated panel roll forming machine, curving machine, glazed tile roll forming machine, floor decking machine, ridge cap roll forming machine, cladding facade system forming machine, cut-to-length slitting line etc., as well as some hydraulic shearing machine, hydraulic folding machine for gutter and flashing, etc.


    2. Technical parameters:

    configurationsmanual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
    Materialprocessing materialColored Steel plate, Galvanized Board, Aluminum Plate
    thickness0.3mm-0.8mm
    Efficienty width1000mm
    Coil width1200mm
    Manual decoilerThe maximum load capacity:5 tonExpand by band
    The coil inside diameter:450-550mm
    Suitable Coil width:1250mm
    Main Forming machineForming steps13steps
    Shaft diameter70 mm
    Thick of arch frame16mm
    Frame bodyHigh strength steel pipe weld with color steel sheet cover
    roller material45# steel
    shaft material45# steel
    cutter materialCr12 mold steel with quenched treatment
    TransmissionBy 1” chain
    Work speed20-25m/min
    Hydraulic systemAutomatic hydraulic cutting after forming, without wasting.
    Control Device

    PLC control

    touch screen

    Program language: English/Chinese(or as required)

    Operating modeButton+touch screen
    Total power4 kw
    Main body colorBlue and orange(or as required)
    Voltage380v/50hz/3ph(or as required)

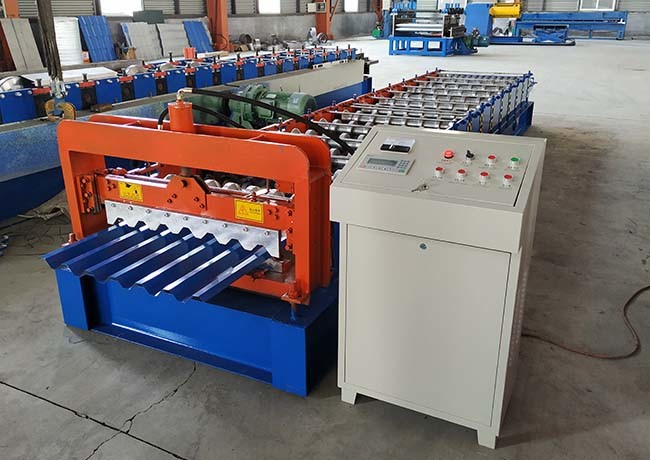

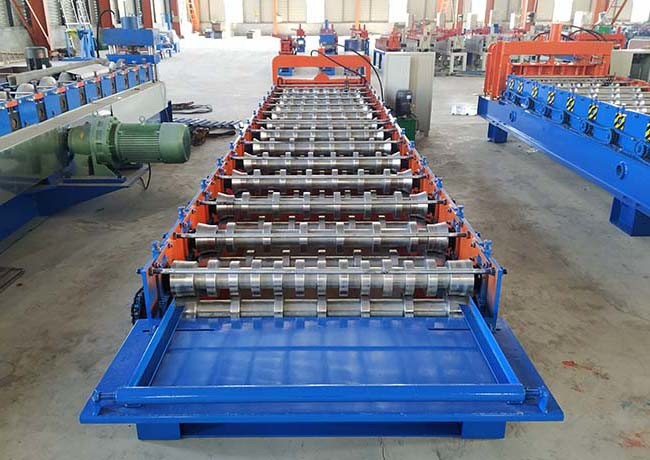

    3. Machine picture
    Aluminium Profile Sheet Metal Roll Forming Machines Cutter Material Cr12 Heat TreatmentAluminium Profile Sheet Metal Roll Forming Machines Cutter Material Cr12 Heat TreatmentAluminium Profile Sheet Metal Roll Forming Machines Cutter Material Cr12 Heat Treatment
    4. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,

    and also trainyour workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


    5. After service

    A. One year guarantee for whole machine.

    B. 24 hours technical support by email or phone call.

    C. If there is any problem found of the machine, we will repair it for free in one year.
