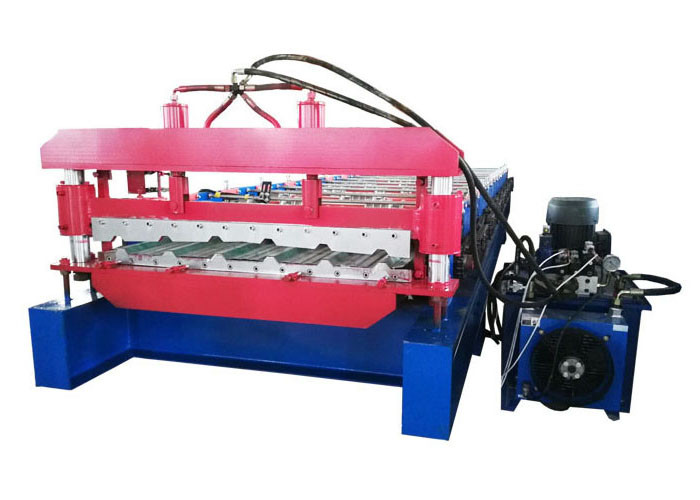

    Thickness 0.2-0.8mm Automated Roll Forming Machine , Cold Roll Forming Machine Power 4 KW

    New Profile Hydraulic Type Sheet Metal Roll Forming Machines speed 25 meters per minute


    roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft70mm or as your requirement
    main frame300 H steel
    forming steps11 stations

    Device Configuration


    Manual decoiler1 set
    Guiding device1 set
    Main roll forming machine1 set
    Hydraulic cutting device1 set
    PLC electric control system1 set
    Hydraulic driving system1 set
    Special tools and parts1 set

    Equipment For Process Flow


    Consist of Decoiler, Main roll forming machine, Cutting device, Hydraulic drive system, Electric control cabinet


    (1)Tension type decoiler


    ①Functional ConfigurationThe worker put coil on the manual decoiler, and tensioning it through spanner.
    ②technical parameters

    The maximum load capacity 5 Ton

    The coil inside diameter φ508mm

    Suitable coil width 1250mm

    (2) Main machine system

    ①Roll forming system


    • Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect.
    • The machine Section production and then splicing it
    • Cr12 Heat Treatment,roller surfaces polishing, hard plating .
    • Support structure in the form of roller shaft.
    • All motors use dedicated motor, has excellent mechanical properties.
    • Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping.

    ②System for forming after cutting off


    • Adopting rolling forming then cut the sheet. No waste here, Cutting knife is made of the Cr12 after quenching.
    • Using combined frame type to cut the machine frame. The characteristics is good maintainability and easy to adjust.
    • Hydraulic stations offer the cutting power.

    ③Structural features


    • Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
    • Cut-off tool: Use of high strength wear thicker type mold, it is advantageous to avoid cutting off at deformation.
    • Hydraulic system
    • Description

    • The main valve parts adopt domestic high-quality brand.
    • Oil cylinder and oil pump adopt national standard rod oil cylinder, easy to purchase all over the world.
    • The motor is national standard copper core, universal around the world.
    • Characteristic

    • The hydraulic system after optimization design, compact structure, with beautiful appearance
    • Stable performance and good durability.
    • Electronic control system
    • Description

    • The machine used well-known brand of Delta PLC control technology. To realize the automatic machine
    • The system to provide friendly man-machine interface, It can be set batch, workpiece length and number, etc.
    • Encoder count, count and length with function.
    • PLC touch screen adopt domestic famous brands.
    • Characteristic

    • Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
    • The main components adopt France Schneider, It will stable performance, good reputation, global procurement.
    • Using a number of control technology, automation degree is high.
    • Encoder count, length accurately.
