Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T

    Buy cheap Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T from wholesalers

    Buy cheap Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T from wholesalers
    • Buy cheap Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T from wholesalers
    • Buy cheap Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T from wholesalers
    • Buy cheap Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T from wholesalers

    Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T

    Ask Lasest Price
    Brand Name : shitong
    Model Number : T1000
    Certification : CE/ISO9001
    Price : 8500$
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 SETS/ MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T

    color steel galvanized metal aluminum glazed trapezoidal roofing sheet roof tile wall panel roll forming machine


    Equipment configuration

    Material of machinePPGI/GI/Aluminium steel sheet
    Material thickness0.25-0.8mm
    Effective Width1000mm
    Feeding Width1200mm
    Main Motor Power3KW
    Pump power3KW
    Shaft Diameter70mm
    Number of rollers13 Steps
    Main Frame300H/U steel
    Medium plate thickness12mm
    Control systermPLC computer control with inverter
    Power supply380V, 3 Phase, 60Hz
    0veral sized6700mm*1550mm*1500mm
    Total weightabout 3.2ton
    Roller materialhigh grade NO.45 forged steel, with hard chrome
    Shaft materialhigh grade NO.45 carbon wrought steel
    Cutter materialCr12 mould steel with quenched treatment
    Machine colorBlue or yellow

    working process:


    type 943 Chinese metal roof tile making machine/roof sheet cold roll forming machine

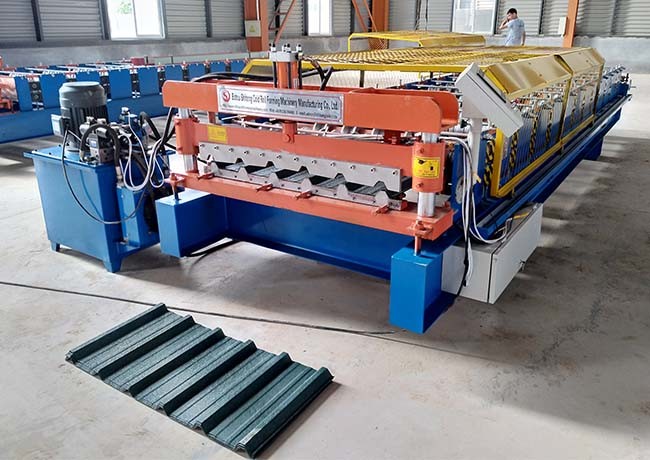

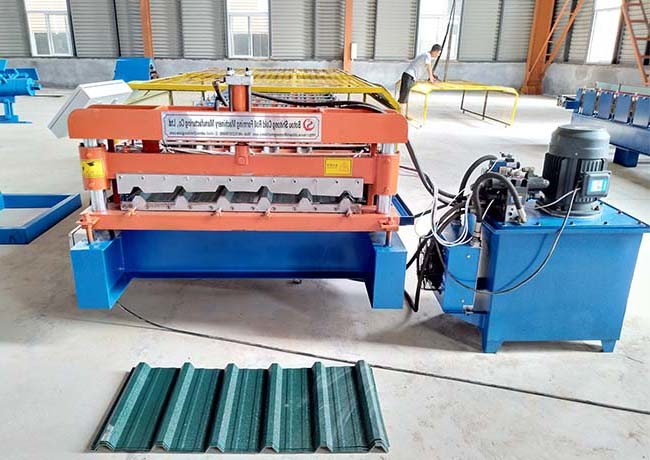

    machine pictures:

    Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2TColor Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2TColor Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T
