Brand Name : | shitong |
Model Number : | T 686 |
Certification : | CE/ ISO9001 |
Price : | contact me to get the lowest price |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 35 sets/ month |
Delivery Time : | 30 days |
Professional Color Steel Aluminum Galvanized Sheet IBR Metal Roof Panel Tiles Making Machine Roll Forming Machine
♦ Components
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Automatic cutting | set | 1 |
6 | Output table | set | 1 |
machine specifications
SPECIFICATIONS FOR IBR ROOFING ROLL FORMING MACHINE | |||
Machine specification | Electric power | kW | 3.7 kW-11 kW |
Machine Weight | Tons | 8.0–13.0 | |
Machine Dimensions (L x W x H) | m | 9.0 x 1.8 x 1.5 | |
Station quantity | stations | 18–24 | |
Raw material | Steel Thickness (BMT) | mm | 0.2–0.8 mm |
Coil Width | mm | 914-1450 mm | |
Material Strength | G300–G550 | ||
Production specification | Forming speed | m/min | 12-14 m/min (EECO) 18-20 m/min (Eco,standard) |
Control system | PLC, Touch Screen HMI | ||
Transmission System | Hydraulic, or Gear motor driven by Inverter | ||
Cutting and punching system | Hydraulic | ||
Option | Entrance shearer |

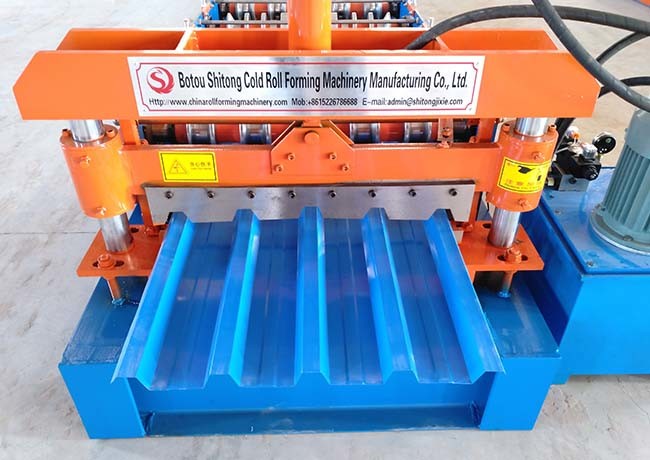

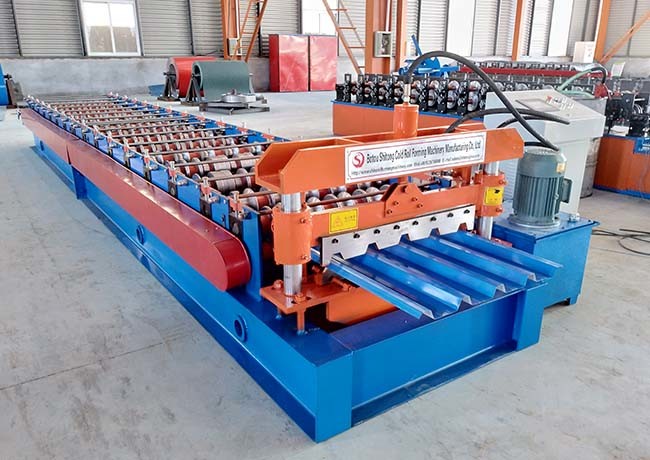

machine details
