    Steel Roof Tile Glazed Tile Roll Forming Machine 914mm Coil Width

    Ask Lasest Price
    Brand Name : ST
    Model Number : 780
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Steel Roof Tile Glazed Tile Roll Forming Machine 914mm Coil Width

    Classic Desigan Steel Roof Tile Glazed Tile Roll forming Machine Roof Tile

    1. Classic Desigan Steel Roof Tile Glazed Tile Roll forming Machine Roof Tile


    1. We are a roll forming machine manufacturer with more than 10 years experience.
    2. Our machine adopt automatically control programmer, enhanced the the machine working efficiency.
    3. Easy to assemble and instal, easy to learn how to operate the machine.
    4. We provide reliable service, stable quality and fast delivery time.


    2. Classic Desigan Steel Roof Tile Glazed Tile Roll forming Machine Roof Tile Parameters:


    Suitable materialPPGI/Aluminium sheet/galvanized sheet/various sheet plates
    Thickness of coil sheet0.18-0.6mm
    Coil width914mm
    Effective width800mm
    Material of main frame400H steel
    Diameter of Soild shaft70mm, high grade 45# steel
    Roller

    High grade 45# steel, quenched and tempered treatment,

    hard chrome plated 0.05-0.07mm

    Thickness of middle plate16mm, 45# steel plate
    Forming station11rows
    Drive typegear box
    Power of main motor7.5 kw, servo motor
    Sidewall connection bar25mm, zinc plated
    Forming speedAbout 8m/min
    Hydraulic pump station15 kw, 40# hydraulic oil
    PLCDELTA(TAIWAN)/Mitsubishi
    Material of razor bladesCr 12, quenching 58-62
    Frequency converter

    It has the advantage of slowing down before cutting, to ensure the

    length accuracy ±1mm, far better than industrial standard ±3mm.

    SwitchCHNT
    Frequency changerDELTA(TAIWAN)/Mitsubishi

    Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack

    Flow chart:

    Product Application

    This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
    The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

    Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
    B. Without visiting, we will send you user manual and video to teach you to install and operate.
    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    3. FAQ

    1. How to get the quotation?
    1.1.Give me the profile drawing and thickness,this is the important.
    1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
    1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.


    2. Do you have after sales support?
    Yes, we are glad to support advice. Our technicians available across the world.

    3. Why your price is higher than others?
    As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.

    4. What can we do if the machine broken?
    The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.

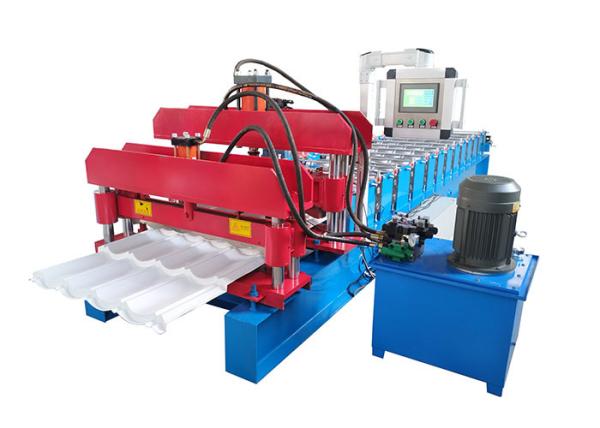

    4 Machine pictures
