Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working

    Buy cheap Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working from wholesalers

    Buy cheap Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working from wholesalers
    • Buy cheap Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working from wholesalers
    • Buy cheap Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working from wholesalers
    • Buy cheap Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working from wholesalers
    • Buy cheap Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working from wholesalers

    Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working

    Ask Lasest Price
    Brand Name : ST
    Model Number : 960
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working

    Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working

    1. Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working


    -- Glazed tile roofing machine for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery.

    -- The finished product of Glazed tile roll forming machine For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.

    -- It has the advantage of beautiful, classical appearance and grace taste.

    -- This machine working speed is around 3 meter per minutes.


    2. Automatic High Speed Glazed Tile Roll Forming Machine Roof Tile Working Parameters:


    Technical Parameter
    Main Motor Power7.5kw
    Sheet Thickness0.4-0.7mm
    Sheet Width1000mm
    Roller Stations16 stations
    Way Of Drive1.2 inch single chain
    Roller Material5# forge steel, coated wif chrome
    Shaft Material and DIA¢76mm, material is 45# forge steel
    Hydraulic Station Power5.5kw
    Size of the press parts2000*1800*1500mm

    Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack

    Flow chart:

    Product Application

    This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
    The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

    Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
    B. Without visiting, we will send you user manual and video to teach you to install and operate.
    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    3. FAQ

    1. How to get the quotation?
    1.1.Give me the profile drawing and thickness,this is the important.
    1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
    1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.


    2. Do you have after sales support?
    Yes, we are glad to support advice. Our technicians available across the world.

    3. Why your price is higher than others?
    As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.

    4. What can we do if the machine broken?
    The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.

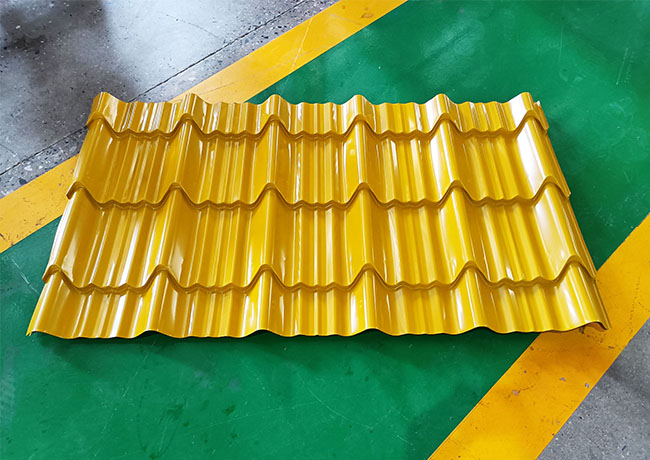

    4 Machine pictures
