    Plc Metal Roofing Sheet Roll Forming Machine Automatically

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : SL400
    Certification : CE
    Price : 7500 - 9500 USD
    Payment Terms : T/T, L/C
    Supply Ability : 30 set per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Plc Metal Roofing Sheet Roll Forming Machine Automatically

    Metal Roofing Sheet Roll Forming Machine Iron Roofing Sheet Making Machine


    Metal Roofing Sheet Roll Forming Machine Iron Roofing Sheet Making Machine


    1. This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.


    2. Roll forming process: uncoiler, rollforming, forming step effect, cut to length.

    3. Fully Automatic Control System with PLC.

    4. Easy operation: Key in the length and quantity on the control panel.

    5. We also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

    7. One roll forming machine only can produce one profile.


    Metal Roofing Sheet Roll Forming Machine Iron Roofing Sheet Making Machine parameters


    Self Lock Roof Panel Roll Forming Machine is a kind of roll forming machine to make self lock roofing, it is designed to make roof effective width 285mm, the main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.30-0.70mm. Work speed can reach 15m/min.


    Forming steps14 stations
    Shaft diameter70mm
    Design typeMiddle plate welded
    Machine frame350# H steel welded
    roller material45# steel, surface hard chromium plating.
    shaft material45# steel
    Work speed15m/min
    TransportBy 1 inch single chains
    Power of main machine5.5 kw
    Type of cuttingHydraulic
    Cutting tolerance±1mm

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. FAQ (about our roll forming machine)

    Q1. What are the main key points for selecting right machines?

    A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
    not the final point.
    Good quality is for long-term business cooperation.

    Q2. Can you provide OEM service for roll forming machine?
    A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
    usage, machine speed, then machine specification will be some different.

    Q3. What's your standard trade terms ?
    A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
    competitive ocean freight.

    Q4. How about the quality control?
    A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

    Q5. How about the after-sale service?
    A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
    parts still broken, we can send the new ones freely.

    Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
    A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
    2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
    3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West

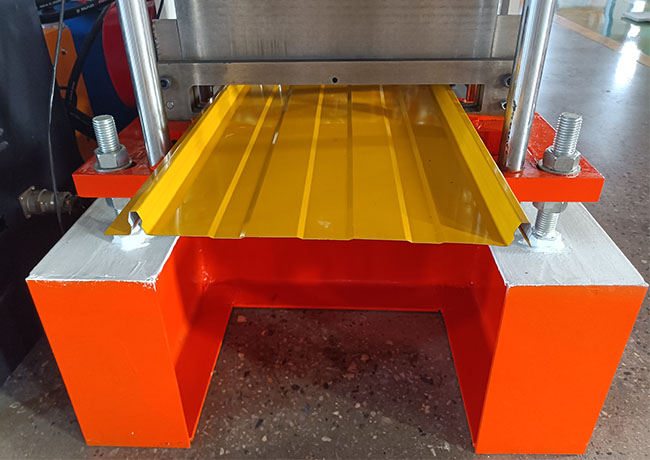

    4. Machine pictures
