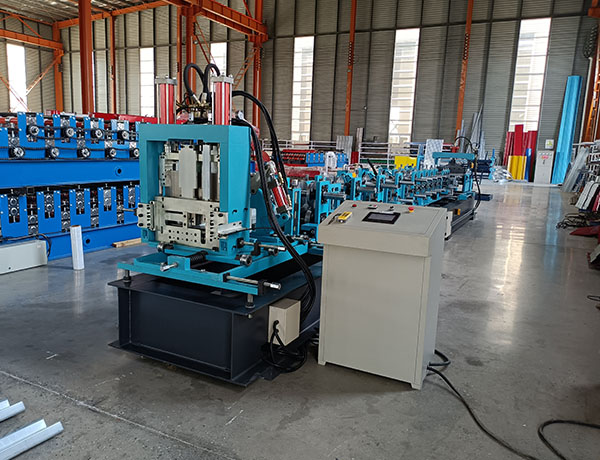

    Interchange Cz Cold Rolled Purlin Roll Forming Machine For Building Materials

    Ask Lasest Price
    Brand Name : ST
    Model Number : 100
    Certification : ISO CE
    Price : contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Interchange Cz Cold Rolled Purlin Roll Forming Machine For Building Materials

    Interchange CZ Cold Rolled Purlin Roll Forming Machine For Building Materials


    Interchange CZ Cold Rolled Purlin Roll Forming Machine For Building Materials


    The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
    1. Produce different purlin size without changing rollers or spacers.
    2. No need changing cutter for different size.
    3. Easy operation, low maintenance cost
    4. Infinite sizing(any size within machine range),help to save material
    5. Optional Punch hole at any position of purlin web side and flange side

    Interchange CZ Cold Rolled Purlin Roll Forming Machine For Building Materials Parameters


    Purlin machine Punching systemWith 3 cylinders punching holes.
    Interchange rollersHigh quality bearing steel G Cr 15 with heat treatment
    Roller surfaceBalck treatment or Hard chorme coating for options
    Machine body frame400 H type steel by welding
    Cutter typeNo need change cutter for different size
    Cutter materialCr12 with heat treatment
    Cutter frameWelding by 30mm steel plate
    Hydraulic motor7.5kw
    DecoilerManual type x 1 set.
    Decoiler capacity5 tons
    Exit rack3 meters x 2 set
    Suitable material thickness1-3mm
    Shaft material45# high grade steel
    Shaft diameter80mm
    Machine main motor11 kw
    Roll forming speed10-18 meters /min
    PLC Control SystemOmron
    Touch screenWuxi Xinjie
    Change size time5-10 minutes to change the size and cutter
    Control systemPLC, Inverter, TouchScreen, Encoder, etc

    Standard Shape Profile ( Also can be customized)
    C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
    Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
    Interchange CZ Cold Rolled Purlin Roll Forming Machine For Building Materials process

    The complete line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.

    Packing Method


    Main machine is packaged with plastic film

    Transportation

    All machines need one 40 feet container to hold


    Payment Term


    30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

    Delivery Time

    Within 35 days after receiving deposit.


    Warranty


    Two years, and we will provide technical support for wholelife of the equipment.

    If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
