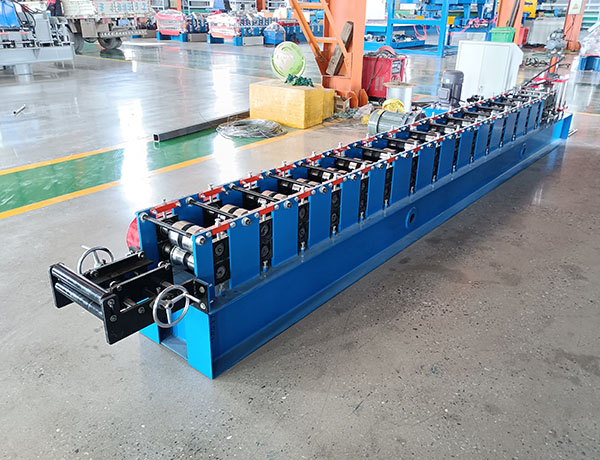

High Speed Cold Bending Door Frame Roll Forming Machine Of Door Frame Making

High Speed Cold Bending Door Frame Roll Forming Machine Of Door Frame Making

Steel doors have always been the best choice for strength and durability, which result in a finished product of the best quality and greatest strength, providing much needed security. Our door frame roll forming machine is the essential for its production.

1. We can design operate language based on customer's mother tongue.2. We provide 24 hours online service to solve any questions .
3. Our three experienced engineer are prepared for your local installation .
4. We provide for free sapre parts for you.
5. We can slod buy suitable testing material for customer's easy operation.
6. Customer can send their workers here study to to use and operate the machine.

High Speed Cold Bending Door Frame Roll Forming Machine Of Door Frame Making Parameters

1. Coil width: 290mm

2. Output speed: 15 - 20m/min

3. Coil thickness: 1.0 - 2.0mm

4. Tolerance: 3m±1.5mm

5. Roller station: 20 stations

6. Main motor power: 5kw

7. Hydraulic oil pump motor: 4kw

8. The pressure of hydraulic: 20Mpa

9. Frequency inverter: Panasonic

10. Computer control system, PLC control length, encoder: Omron

11. Diameter of roller: Ф76

12. Material of cutter: Gcr15 advanced steel, heat treatment HRC 58-62, chrome coating

13. The material of roller: #45 advanced steel

14. Material of cutter: Cr12Mov

15. Transmission type: 1.5 inch chain drive

16. Machine dimension: 9m*1.5m*1.2m

High Speed Cold Bending Door Frame Roll Forming Machine Of Door Frame Making process

The complete line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.

Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
