CNC Steel Door Profile Frame Roll Forming Making Machine Metal
Garage Door Making Machinery
1. Steel door frame roll forming machine by customized
We can provide door frame equipment with accurate punching and
beautiful molding to meet the customer's need for punching during
the construction process,and solve the problem of the customer's
appearance and surface appearance during use.And we can provide
customized steel door frame equipment solutions used in the
installation of interior doors in civil buildings.
2. Steel door frame roll forming machine by customized parameters
| (1)The general machine parameter |
| Suitable roll forming material | Cold Rolling Mills |
| Thickness | 0.6-1.0mm |
| Frame design | Wall-plate-frame-design /Strong-stand-frame-design |
| Roll stages | 16 stages |
| Material of forming roller | 45# Steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main motor power | 5.5KW, frequency speed control |
| Max. Line speed of roll former | 15m/min (Higher speed is available, depends on the specification
required by the buyer) |
| Hydraulic group power | 4 KW |
| Material of cutting blade | Cr12, heat treatment |
| Electric Standard | 380V /50Hz/3PH or as the customer's requirements |
| Machine Dimensions | 8750mm×1380mm×1400mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer’s requirements |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. After-sales service
In correct operation & maintaining, the machine is guaranteed for
one year since leaving our factory excludes the electric elements.
Installation:
(1) If installation is needed, Liming (the seller) will dispatch
technician to the buyer’s factory abroad to assist regulating the
machine with charge free. The buyer should assist Liming to get the
Chinese technician's visa and should pay for the roundtrip air
ticket and the local accommodation.
(2) If installation is needed, the buyer shall make the following
preparation before arrival of technicians.
a) Position the machine in the buyer’s factory.
b) Prepare necessary electric wiring.
c) Prepare material of trial running.
d) Provide labors for assistance and installation during
installation.
e) If possible, One Chinese-speaking interpreter so that the
communication between the buyer and seller’s technician will go
smoothly.
4. FAQ
4.1. How can we be assured that you will deliver us quality machine
with spare parts?
A:1. Customers to send the technical people to our factory for
checking the quality.
2.We can send the technicians to the buyer`s factory for the
installation of the machine.
4.2. What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement
parts free of charge
for any damaged parts caused by quality problems after two
years,you need to buy by factory cost.
4.3. How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
4.4. How is your Payment Term?
A:T/T, Western Union
4.5. What’s your delivery time?
A:Normally it is about 45 days, but we will delivery as soon as
possible
5. Company strength introduction
Our technical force is abundant. Production equipment is advanced,
detection means is complete. We specialize in the professional
production of various types of roll forming machines, and the
development and production of fully automatic intelligent control
roll forming machines of C-shaped steel and dust collector anode
plates, and other equipment.
Our factory has highly qualified and experienced professionals and
highly skilled construction workers to serve you. Our factory can
design and produce various kinds of special-shaped cold-formed
molding equipment for different needs of the users.

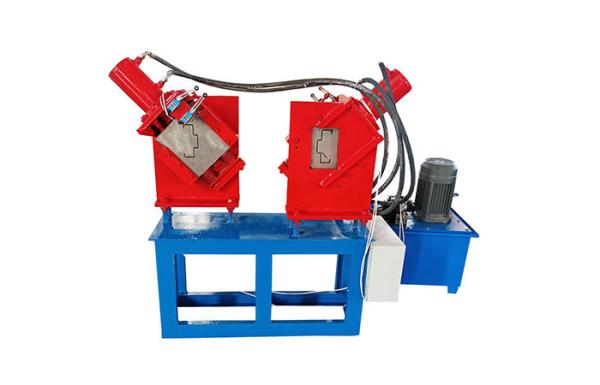

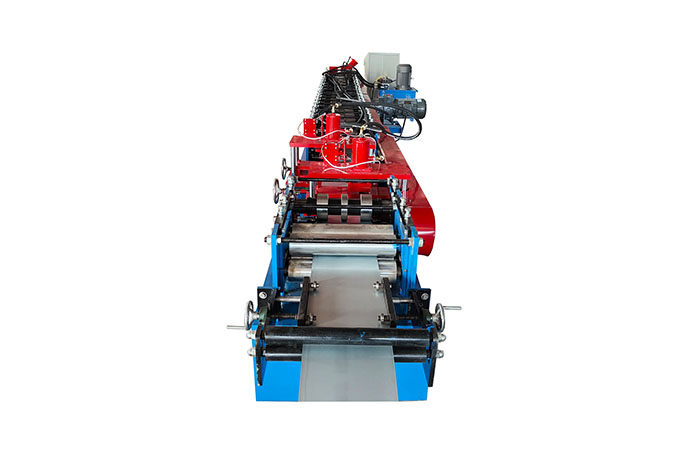

6. Roll forming machine pictures
