    Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : D150
    Certification : ISO,CE
    Price : Contact us to get the best price
    Payment Terms : T/T, Western Union
    Supply Ability : 20 sets/month
    Delivery Time : 40 - 60 days
    • Product Details
    • Company Profile

    Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile

    Automatic Galvanized Steel Plate Tile Roller Shutter Door Frame Cold Roll Forming Making Machine


    1. Steel door frame roll forming machine by customized

    We can provide door frame equipment with accurate punching and beautiful molding to meet the customer's need for punching during the construction process,and solve the problem of the customer's appearance and surface appearance during use.And we can provide customized steel door frame equipment solutions used in the installation of interior doors in civil buildings.


    2. Steel door frame roll forming machine by customized parameters

    No.TypeSpecification

    1


    Row Material

    TypeColored steel plate, Galvanized board, Aluminum plate ect
    Feeding width122mm or According to client’s requirement
    Thickness0.7-0.8mm

    2


    Main Body

    Forming roller station12 Stations
    Straight roller station3 Stations ( Up layer 2 rollers , down layer 3 rollers )
    Diameter of shaft40mm
    Shaft materialHigh grade 45# steel
    Roller materialHigh grade 45# steel , hard treatment and polishing ( plated chrome on surface )
    Main body frameWhole set of square pipe
    Frame thickenss14 mm
    Working speed8-15 m/min
    Size (L*W*H)About 6800*850*1310mm
    WeightAbout 2.5 tons

    3


    Power

    Motor power3 kw
    Hydraulic power3 kw
    Voltage380V 50Hz 3phases or Customerization
    Drving WayBy Gear

    4


    PLC Control System

    LanguageEnglish and Chinese
    Brand Of PLCDelta brand ( Touch Screen )
    OperationManual and Automatic ( Two Type )
    TransducerDelta brand

    5


    Cutting Device

    Cutting TypeHydraulic Cutting
    Blade of CuttingCr12 , quenching treatment
    Cutting Tolerance± 1mm
    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. After-sales service

    In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

    Installation:

    (1) If installation is needed, Liming (the seller) will dispatch technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.

    (2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.

    a) Position the machine in the buyer’s factory.

    b) Prepare necessary electric wiring.

    c) Prepare material of trial running.

    d) Provide labors for assistance and installation during installation.

    e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller’s technician will go smoothly.


    4. FAQ

    4.1. Does one machine can only produce one style panel profile?

    Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.


    4.2. Do you have after sales support?
    Yes, we are happy to give advice and we also have skilled technicians available across the world.We need

    your machines running in order to keep your business running.


    4.3. How to visit your company?

    a.Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick

    up you.

    b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then

    we can pick up you.


    4.4. What can you do if the machine broken?

    Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can

    through negotiation for to solve the problems,and we supply the technical support for the whole life of the

    equipment.


    4.5. Can you be responsible for transport?

    Yes,please tell me the destination port or address.we have rich experience in transport.


    5. Company strength introduction

    Our technical force is abundant. Production equipment is advanced, detection means is complete. We specialize in the professional production of various types of roll forming machines, and the development and production of fully automatic intelligent control roll forming machines of C-shaped steel and dust collector anode plates, and other equipment.

    Our factory has highly qualified and experienced professionals and highly skilled construction workers to serve you. Our factory can design and produce various kinds of special-shaped cold-formed molding equipment for different needs of the users.

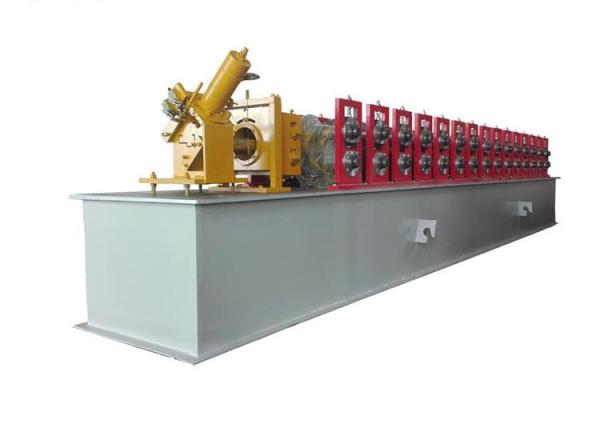

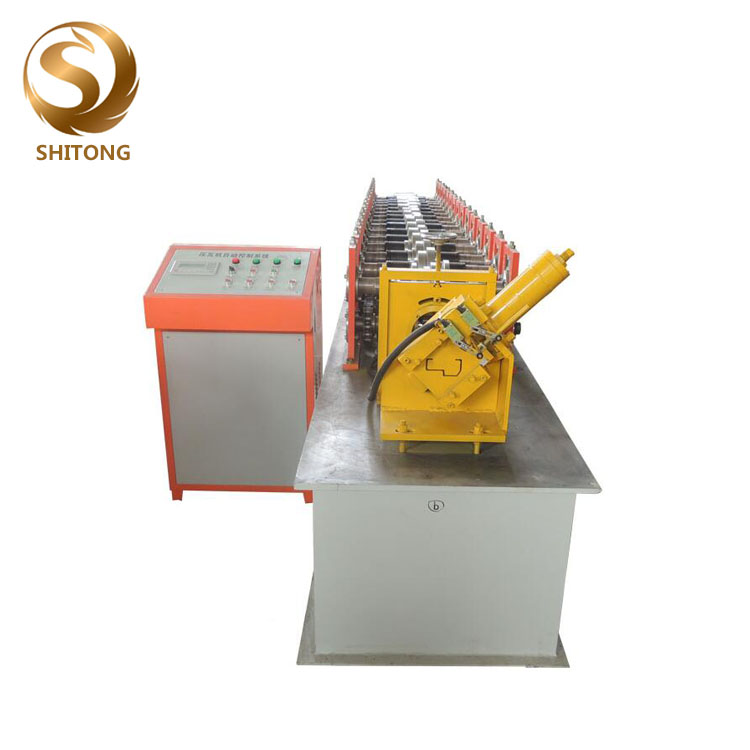

    6. Roll forming machine pictures
