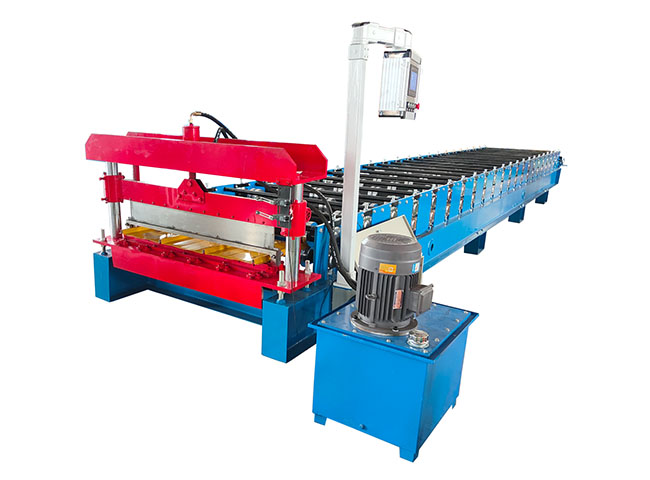

    Iron Roofing Sheet Metal Roll Forming Machine Tile Sheet Customized Profile

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : T1000
    Certification : CE
    Price : 7500 - 9500 USD
    Payment Terms : T/T, L/C
    Supply Ability : 30 set per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Iron Roofing Sheet Metal Roll Forming Machine Tile Sheet Customized Profile

    Iron Roofing Sheet Metal Roll Forming Machine Tile Sheet Customized Profile

    Iron Roofing Sheet Metal Roll Forming Machine Tile Sheet Customized Profile


    Iron roofing sheet roll froming machine is designed to produce the steel coil into a formed shape, which have some ribs. The sheet is used for roofing sheet or wall panels.

    We accept customized profile. We can design the machine to produce any profile which customer need.

    The machine have control system which can control machine to produce the correct length sheet.

    Machine working speed is adjustable by the control system.


    Iron Roofing Sheet Metal Roll Forming Machine Tile Sheet Customized Profile parameters


    General InformationCoil MaterialPPGI/PPGL/GI/GL
    Coil Thickness0.3~0.8MM
    Coil Width1000MM
    Speed15~20M/MIN
    VoltageAs Customer's Request
    Roll Forming UnitRoller Station16
    Driving Motor5.5KW
    Shaft Diameter70mm Solid
    Shaft Material45# Hard Steel
    Roller Material45# Hard Steel
    Under Frame350H-Beam
    Sidewall Thickness16MM
    Transmission1 Inch Chain
    Feeding Device1 Set With Pre-cutter
    Cutting UnitCutting TypeHydraulic Stop TO Cut
    Hydraulic Pump Power3KW
    Cutting Die MaterialCr12Mov
    Hydraulic Oil46# Abrade Oil
    Control UnitControl MethodPLC
    Length ControlEncoder
    OperationTouch Screen
    LanguageChinese & English
    Auxilliary Device---5T Manual Decoiler
    ---Exit Rack

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. FAQ (about our roll forming machine)

    Q1. What are the main key points for selecting right machines?

    A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
    not the final point.
    Good quality is for long-term business cooperation.

    Q2. Can you provide OEM service for roll forming machine?
    A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
    usage, machine speed, then machine specification will be some different.

    Q3. What's your standard trade terms ?
    A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
    competitive ocean freight.

    Q4. How about the quality control?
    A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

    Q5. How about the after-sale service?
    A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
    parts still broken, we can send the new ones freely.

    Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
    A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
    2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
    3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West


    4. Machine pictures
