    Hydraulic Cutting Ppgi Shutter Door Roll Forming Machine With Punching

    Ask Lasest Price
    Brand Name : shitong
    Model Number : ST 128
    Certification : CE/ ISO9001
    Price : contact me to get the lowest price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 35 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Hydraulic Cutting Ppgi Shutter Door Roll Forming Machine With Punching

    Garage door panel production line rolling door manufacturing machine with punching


    Quick Details
    1.Suitable MaterialColored Steel plate, Galvanized Board, Aluminum Plate
    2.Coil width175mm
    3.Effective width120mm
    4.Thickness0.7-1.2mm
    5.ColorAs you like
    6.Appearance size(About)5.0*0.8*1.3m
    7.Rows of rollers12 rows
    8.Rolling material45# steel,roller surfaces polishing, hard plating
    9.Diameter of shaft¢38mm
    10.Service life7 years
    11.Total power3.7 KW
    12.Productivity15-20m/min
    13.Cut ModeHydraulic forming after cutting off
    14.Cutter materialCr12 Heat Treatment
    15.Electronic control systemPLC, Touch Screen, Encoding counter

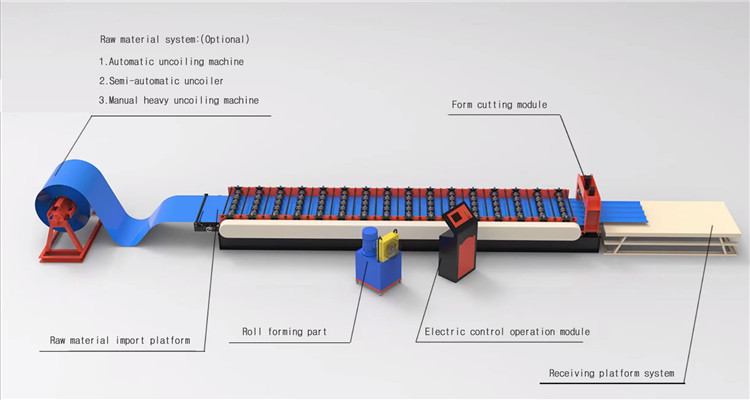

    Standard Configuration:


    Motor decoiler1 set
    Servo punching machine1 set
    Main roll forming machine1 set
    Hydraulic pump1 set
    PLC control system1 set
    Receiving Stands2 sets
    Spare parts1 box

    Packing Method

    Main machine is packaged with plastic film

    Transportation

    All machines need one 20 feet container to hold

    Payment Term

    30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

    Delivery Time

    Within 35 days after receiving deposit.

    Warranty

    Two years, and we will provide technical support for wholelife of the equipment.

    If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
