Factory advance pressure trapezoidal tile sheet metal roof roll forming machine

Manual Decoiler

1.Work type: passive type
2.Structure: Steel channel welded for the basic frame
3.usage:To support the coil and make the uncoiling
4.Loading capacity: 5 tons
5.Inner diameter: 450-550mm (manual adjustment)
6.Coil width: 1250mm
7.Brake system: manual brake

Main forming machine parameters
1.Feeding device
One set guiding roller
Steel plate welded platform to carry the sheet and feed into roll forming system
Feeding width is adjustable with the handle wheels
2.Rolling shaft
Shaft material:45# STEEL
Shaft diameter: 75 mm
Tempering treatment to prevent deformed and improve hardness
3.Roller
Shaft material:45# steel
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station:16 rolling stations
Work speed: 0-12 m/min {4 pieces per minute (3m per piece)}
Machine structure:Steel plate welded structure
Machine basic frame
:50# H steel welded
Work power:5.5 kw
Rolling spacer: Anti rusty treatment
Pull rod: Anti rusty treatment
4.Transmission
By Chains with cover
Noted: please fill the lube in case the chains getting dry

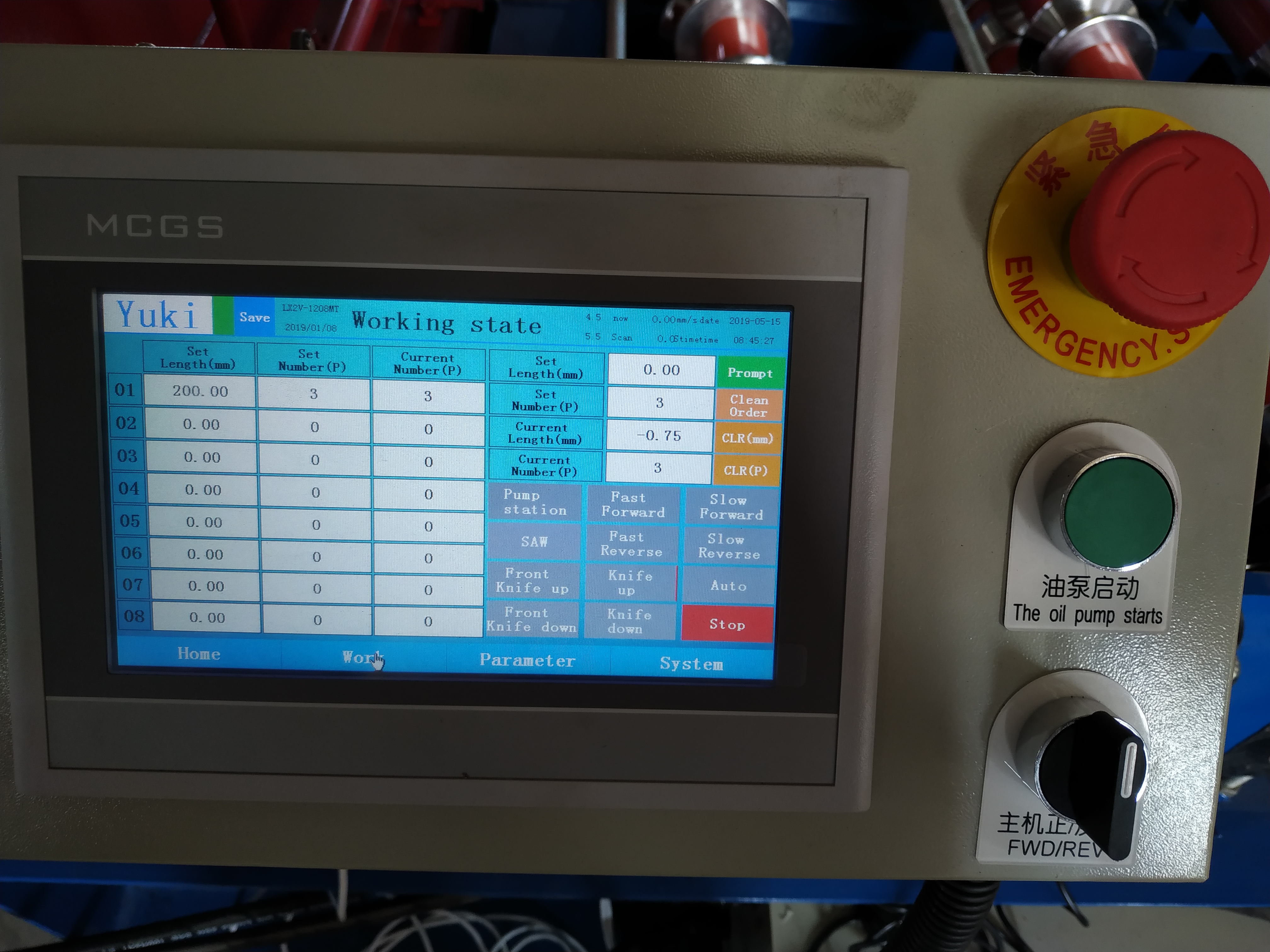

PLC Control System
Frequency brand: Delta (original)
PLC brand: Delta (original)
Frequency brand: Delta (original)
Screen type: Touch screen, also have buttons on the panel
Screen language:English/Chinese
Cut command: Yes
Profile length set-up: Yes
Batch quantity program: Yes
Low pressure electric part: Schneider brand
Encode: Omron brand

Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
