    PPGI PPGL Color Steel Galvanized Ridge Capping Roll Forming Machine Hydraulic Cutting

    Ask Lasest Price
    Brand Name : ST
    Model Number : 400
    Certification : CE ISO
    Price : 9500 USD for per set
    Payment Terms : T/T
    Supply Ability : 30 sets for per month
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    PPGI PPGL Color Steel Galvanized Ridge Capping Roll Forming Machine Hydraulic Cutting

    Hydraulic Cutting PPGI PPGL color steel galvanized steel ridge cap sheet making machine

    Product introduction:

    Our company engaged in manufacturing the roll forming set of roofing panel and wall panel used for steel construction for many years. This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on.

    It is produced continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.

    Specifications

    No
    Item
    Data
    1
    Raw material width
    400mm
    2Efficiency width260mm
    3
    Raw material
    PPGL/GL
    4
    Material thickness
    0.3-0.8 mm or customized
    5
    Forming roller material
    45# steel plated with chrome
    6
    Shaft diameter
    70 mm
    7
    Forming roll station
    16rollers
    8
    Main motor power
    4 KW
    9
    Control system
    PLC control
    10
    Language
    chinese , english or as your customzied
    11
    Machine color
    red and bule or as your customized

    Characteristic

    1 High efficiency, High Energy.

    2 The surface of the roof cap will be very smooth and beautiful

    3 Easy fix and operation; the key is in the length and quantity on the control panel.

    4 It has advantage of pretty appearance

    5 Durable

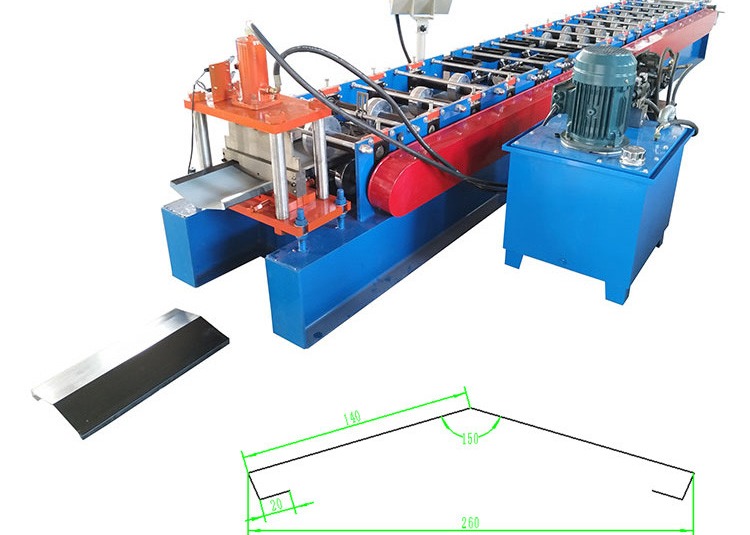

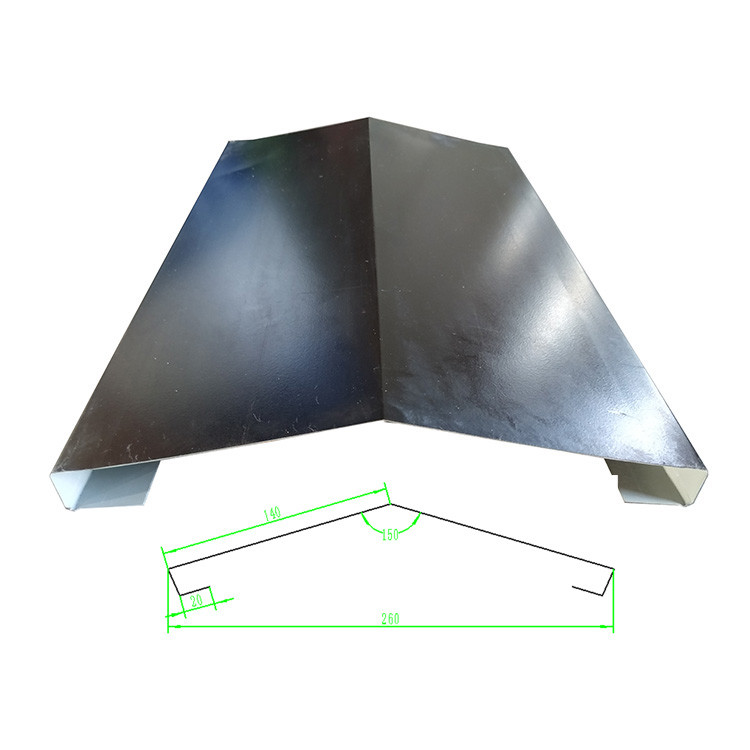

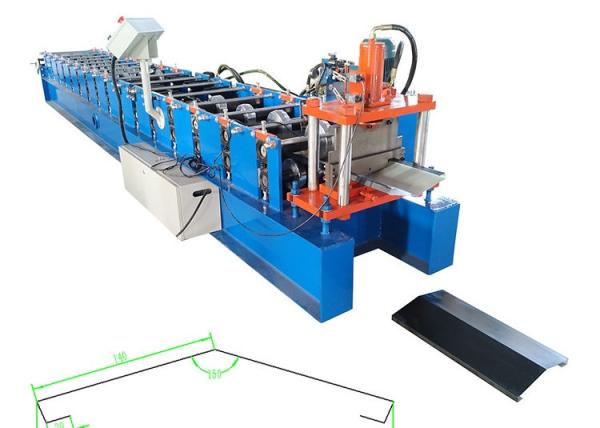

    Main Pictures

    PPGI PPGL Color Steel Galvanized Ridge Capping Roll Forming Machine Hydraulic CuttingPPGI PPGL Color Steel Galvanized Ridge Capping Roll Forming Machine Hydraulic CuttingPPGI PPGL Color Steel Galvanized Ridge Capping Roll Forming Machine Hydraulic CuttingPPGI PPGL Color Steel Galvanized Ridge Capping Roll Forming Machine Hydraulic CuttingPPGI PPGL Color Steel Galvanized Ridge Capping Roll Forming Machine Hydraulic Cutting
