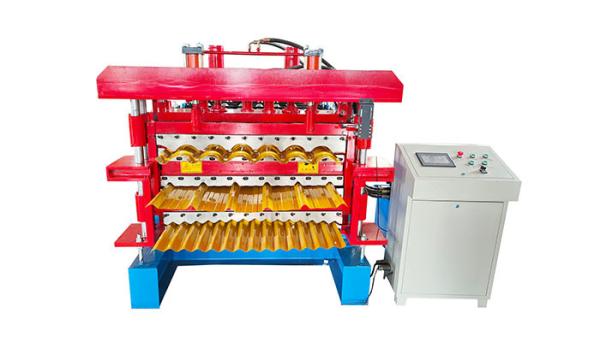

Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm

    Buy cheap Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm from wholesalers

    Buy cheap Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm from wholesalers
    • Buy cheap Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm from wholesalers
    • Buy cheap Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm from wholesalers
    • Buy cheap Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm from wholesalers
    • Buy cheap Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm from wholesalers
    • Buy cheap Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm from wholesalers

    Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 820-840-836
    Certification : ISO,CE
    Price : $22000-$23000
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm

    metal roof three layer full automatic roll forming machine for roofing and wall panel roll forming machine


    1.

    Essential details
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
    Showroom Location:
    None
    Condition:
    New
    Type:
    Tile Forming Machine
    Tile Type:
    Colored Glaze Steel
    Use:
    ROOF
    Production Capacity:
    14 m/min
    Place of Origin:
    Hebei china
    Brand Name:
    JCX
    Voltage:
    380V
    Dimension(L*W*H):
    7000mm*1500mm*1700mm
    Weight:
    3800 kg
    Warranty:
    1 Year
    Key Selling Points:
    Easy to Operate
    Rolling thinckness:
    0.3-0.8mm
    Feeding width:
    1220mm
    Machinery Test Report:
    Provided
    Video outgoing-inspection:
    Provided
    Marketing Type:
    Hot Product
    Warranty of core components:
    1 Year
    Core Components:
    Motor, Other, Bearing, Gear, Pump, Engine, PLC
    Cutting blade material::
    Cr 12 High Grade Steel
    Main frame:
    300-450 H steel
    Profiles:
    Cold Roll Forming Machine
    Roller material::
    45#steel Chrome Plated
    control system::
    PLC(imported Brand)
    Certification::
    CE ISO

    2. Three Profile Sheet Combination Three Layer Cold Roll Forming Machine for Roofing and Wall parameters

    High quality glazed tile IBR sheet double layer trapezoidal roof press making machine roll forming machinery
    1.Formed Material

    PPGI,GI,AI

    Thickness:0.3-0.8mm
    2.Decoiler
    Hydraulic decoiler
    Manual decoiler(will give you as free)
    3.Main body
    Roller station
    15 rows(As your requirement)
    Diameter of shaft
    80mm solid shaft
    Material of rollers
    45# steel, hard chrome plated on the surface
    Machine body frame
    350 H steel
    Drive
    Double Chain transmission
    Dimension(L*W*H)
    7500*1600*1600(customize)
    Weight
    7.5T
    4.Cutter
    Automatic
    cr12mov material, no scratches, no deformation
    5.Power
    Main Power
    5.5KW
    6.Voltage
    380V 50Hz 3Phase
    As your requirement
    7.Control system
    Electric Box
    Customized(famous brand)
    Language
    English(Support multiple languages)
    PLC
    Automatic production of the whole machine. Can set batch, length, quantity, etc.
    18.Forming Speed
    8-12m/min
    15-20m/min
    The speed depends on the shape of the tile and the thickness of the material.

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

    4. Comapny advantage:

    In Botou, we start the pressure roll forming machine export business from 2008.

    As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.

    Provide best price,good quality and fast delivery.

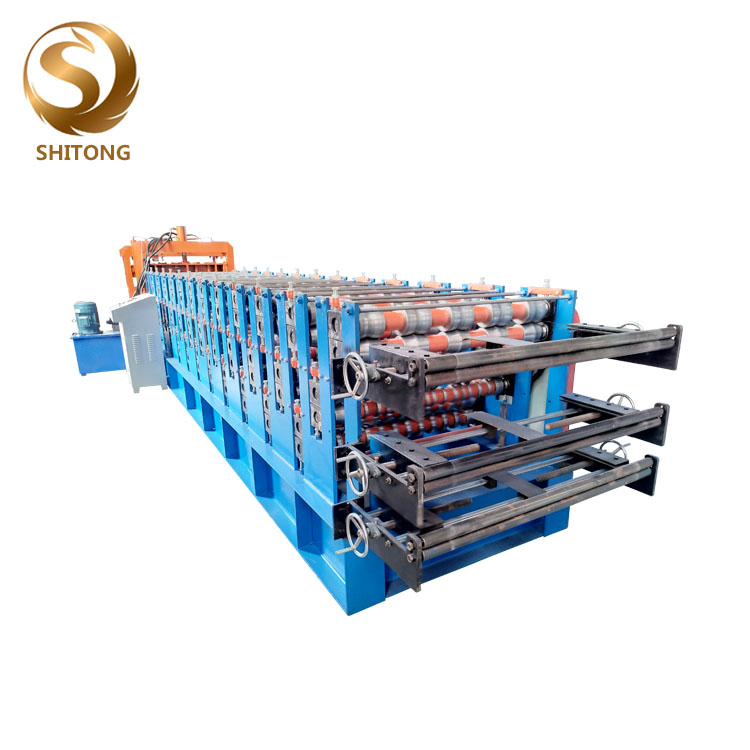

    Machine pictures:

    Three layer roof slate metal tile making machine trapezoidal corrugated ibr roof sheet roll forming machine

    Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
    When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!

    Please feel free to contact us:

    Contact person: Jessie Wang

    Whatsapp/Wechat: +8613230728517

    Email: jessie@shitongjixie.com

    ADD:No. 1 Road, Economic Development Zone, botou, Hebei, China
