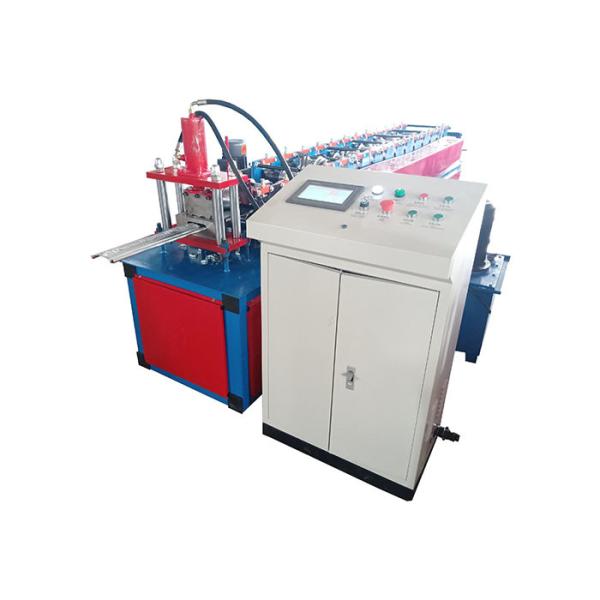

    Steel Sheet Slat Roller Shutter Door Roll Forming Machine Building Material

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 140
    Certification : ISO,CE
    Price : $6000
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Steel Sheet Slat Roller Shutter Door Roll Forming Machine Building Material

    new design building material steel sheet slat roller shutter door roll forming machine


    Essential details
    Condition:
    New
    Applicable Industries:
    Advertising Company, Building Material Shops, Construction works , Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Hotels, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Restaurant, Retail
    Showroom Location:
    None
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Not Available
    Marketing Type:
    New Product 2022
    Warranty of core components:
    1 Year
    Core Components:
    Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure vessel, Pump
    Brand Name:
    YUFA
    Voltage:
    8.5KW
    Weight:
    3000 kg
    Warranty:
    1 Year
    Production Capacity:
    8-15m / mins
    Power:
    8kw, Hydraulic
    Dimension(L*W*H):
    6m * 1m * 1.1m
    Applicable Material:
    Aluminum, Carbon steel, Other, Stainless steel
    Key Selling Points:
    High-accuracy
    usage:
    forming shutter door
    door type:
    roller shutter door
    machine name:
    Shutter roller door forming shutter roll forming making machine
    Automation:
    Automatic
    Raw material:
    PPGI/Galvanized sheet
    Raw material thickness:
    0.5-1.5 mm
    material of cutting blade:
    Cr12
    Control system:
    Taiwan Delta
    Color:
    Client's Request

    Servo Drive Cutting Roller Shutter Door Slat Roll Forming Machine
    Metal material thickness
    0.7-1.2mm
    Metal material width
    166mm
    Roller Stage
    12 forming rows
    Roller Material
    Gcr15 steel with chromium plate
    Diameter of shaft
    Φ50mm
    Material of cutting blade
    Cr12Mov, Quenched treatment 58℃-60℃
    Main Structure of the Machine
    Steel plate welding
    Side Panel of Machine
    25mm
    Cutting Type
    Servo Drive Hydraulic Cutting
    Motor power
    5.5 kw Shanghai Lichao
    Hydraulic power
    5.5 kw with cooling device
    Productivity
    0-25m/min
    Plc control system
    Delta or as customer require
    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

    4. Comapny advantage:

    In Botou, we start the pressure roll forming machine export business from 2008.

    As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.

    Provide best price,good quality and fast delivery.

    Machine pictures:


    PACKING & DELIVERY

    A.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. B.Rollers
    and shafts are covered with anti-rust oil. C.PLC control system and motor pump are packed with waterproof paper and plastic film.
    D.Spare parts in a carton box. E.Manual decoiler was nude packing. F.The output-table put into a carton box. G.If the machine is
    too long, we will divide it into two parts and pack them in one package with steel wire. H.Fit for ocean shipping.
