    Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic

    Ask Lasest Price
    Brand Name : ST
    Model Number : C49-100
    Certification : CE ISO
    Price : $9000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic

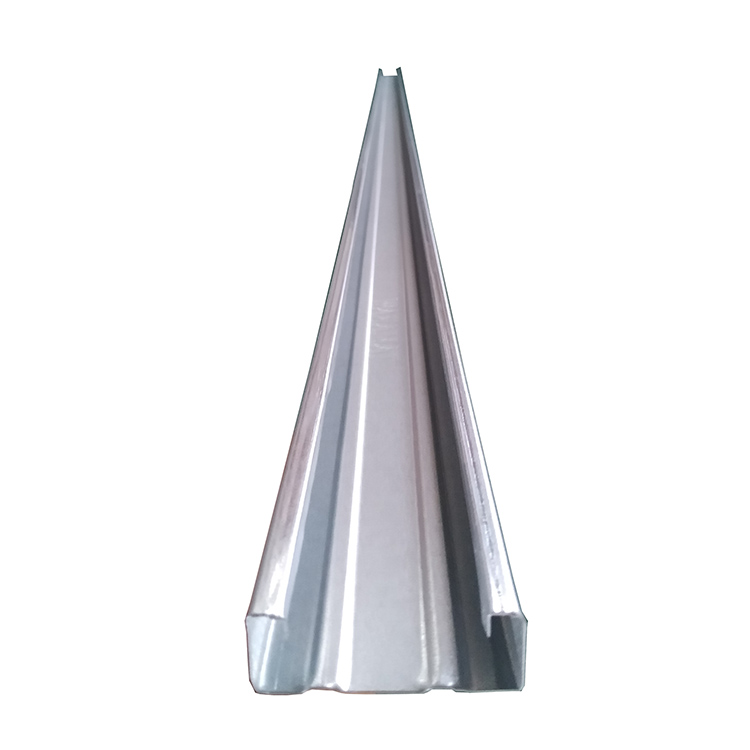

    Building Material Machinery Prefeb Automatic C Purlin Typle Steel Frame & Purlin Roll Forming Machines


    (1) 5Tons un-coiler
    DescriptionThere are different choices, please turn to the catalogue of un-coiler
    (2) The general machine parameter
    Suitable roll forming materialGalvanized steel sheet or Ex cold rolled sheet
    Thickness1.5-2.4mm
    Frame designWall-plate-frame-design /Strong-stand-frame-design
    Roll stages14 stages
    Material of forming rollerGCr15, CNC lathes, Hard Chrome Coated
    Shafts DiameterΦ75mm
    Main motor power18.5KW, Frequency speed control
    Max. Line speed of roll former7-10m/min (Higher speed is available, depends on the specification required by the buyer)
    Hydraulic group power15KW
    Material of cutting bladeCr12, heat treatment
    Electric Standard380V /50Hz/3PH or as per customers requirements
    Machine Dimensions11760mm×1980mm×1630mm (estimated only)
    Major Color of Machine PaintedRAL 5015 (Blue) or as per customers requirements
    (3) PLC Control system
    PLCSiemens brand (ABB brand is available if required)
    Touch ScreenSiemens brand (ABB brand is available if required)
    InverterSchneider brand (ABB brand is available if required)
    EncoderOmron brand
    (4) Product rack
    DescriptionUn-powered, 6 meters length

    (5) Option:

    1. Hydraulic pre-shearing device

    2. CE certificate

    Please refer to the attached pictures for details

    (6) Service after sell

    In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

    Installation:

    (1) If installation is needed, Liming (the seller) will dispatch technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.

    (2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.

    a) Position the machine in the buyer’s factory.

    b) Prepare necessary electric wiring.

    c) Prepare material of trial running.

    d) Provide labors for assistance and installation during installation.

    e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller’s technician will go smoothly.

    (7) About us
    Please visit the web site: www.xmliming.com.cn for detailed information

    Components and Technical Specification

    NoTechnical Specification
    1

    Manual Uncoiler


    Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T

    Inner diameter: 500-508mm

    2

    Feeding Table



    Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

    3

    Main Roll Forming Machine


    Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.


    4

    Hydraulic System



    Hydraulic oil: 40#

    hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

    6Computer Control Cabinet

    The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

    PLC:EURA

    Shearing Mechanism


    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

    Material of blades: Cr12,quenching treatment

    7

    Output table


    It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.



    Please feel free to contact us:

    Contact person: Jessie Wang

    Whatsapp/Wechat: +8613230728517

    Email: jessie@shitongjixie.com

    ADD:No. 1 Road, Economic Development Zone, botou, Hebei, China
