    Automatic Fast Speed Steel Profile Forming Machine For Drywall Stud And Track

    Ask Lasest Price
    Brand Name : ST
    Model Number : 165
    Certification : CE ISO
    Price : 13500 USD for per set
    Payment Terms : T/T
    Supply Ability : 30 sets for per month
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    Automatic Fast Speed Steel Profile Forming Machine For Drywall Stud And Track

    Automatic Fast Speed Steel Profile Forming Equipment For Drywall Stud And Track

    Product information:

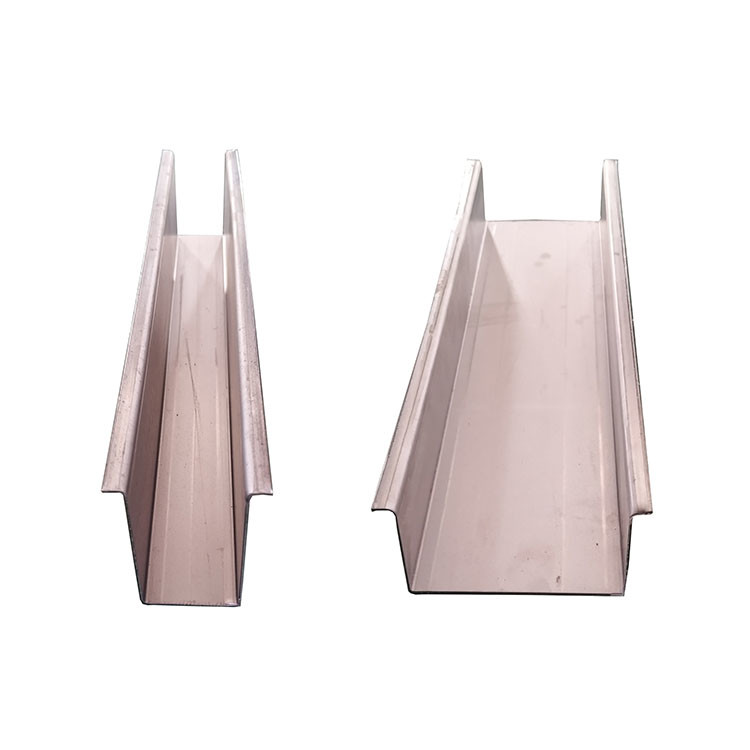

    Light Keel machine is a strip of material, by continuous cold rolling molding, production of complex cross-section profiles (products: light steel keel, paint keel, cassette keel, a variety of architectural profiles, steel, steel-lined door profiles, high speed protection bar, etc.) and different sizes of cold-formed, paint unit equipment, PLC control.

    Application:

    It can widely used on furred ceiling. After crossing the zinc the light keels long time without rust.

    Characteristics:

    1. Plc control system, it is save to operate machine

    2. High efficiency and low price

    3. Good performance and low production cost


    Parameters:

    No
    Item
    Data
    1
    Raw material width
    165mm
    2
    Raw material
    PPGL/GL
    3
    Material thickness
    0.3-0.6mm or customized
    4
    Forming roller material
    45# steel plated with chrome
    5
    Forming roll station
    14rollers
    6
    Main motor power
    5.5KW
    7
    Control system
    PLC control
    8
    Language
    chinese , english or as your customzied
    9
    Machine color
    red and bule or as your customized

    10


    voltage380v 50hz 3 phases or as your requirements

    11


    dimension7.2*1*1.2m

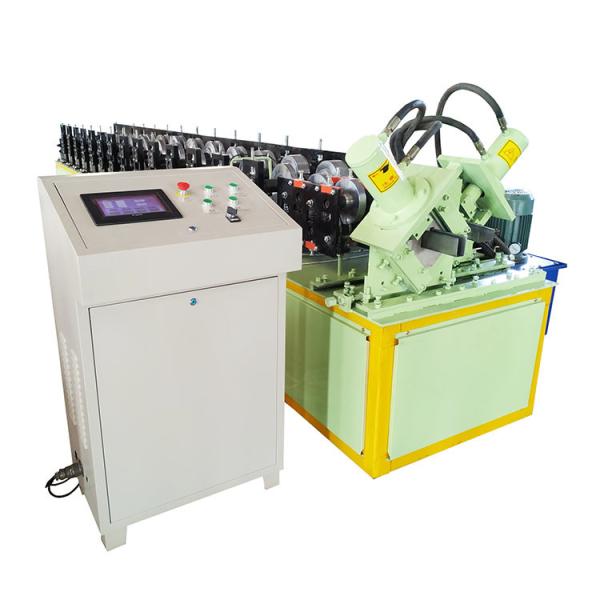

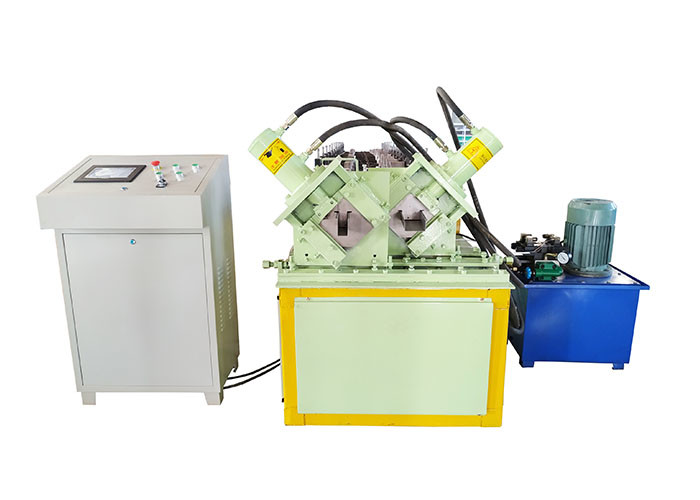

    Main Pictures

    Automatic Fast Speed Steel Profile Forming Machine For Drywall Stud And TrackAutomatic Fast Speed Steel Profile Forming Machine For Drywall Stud And TrackAutomatic Fast Speed Steel Profile Forming Machine For Drywall Stud And TrackAutomatic Fast Speed Steel Profile Forming Machine For Drywall Stud And Track
