    Thickness 0.8-1.2mm Floor Deck Roll Forming Machine with 24 rows Roller station

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 1020
    Certification : ISO,CE
    Price : 24000
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Thickness 0.8-1.2mm Floor Deck Roll Forming Machine with 24 rows Roller station

    Floor Metal Decking Sheet Tiles Roll Forming Machine Steel Metal Decking Forming machi


    No.
    main parameter of CORRUGATED roll forming machine
    1
    Suitable to process
    Color steel plate, galvanized sheet, aluminum coils and etc.
    2
    Width of the feeding material
    1000mm
    3
    Roller station
    24 rows
    4
    Thickness of feeding material
    0.8-1.2mm
    5
    Power
    22kw
    7
    Productivity
    8-12m/min
    8
    Diameter of the roller
    Φ90mm
    9
    Weight
    About 14 T
    10
    Size
    10500*1600*1700mm
    11
    Voltage
    380V 50Hz 3phases
    12
    Rolling material
    Carbon Steel 45#
    13
    Material of the cutting plate
    Cr12
    14
    Wall thickness of main forming machine
    20mm steel plate
    15
    Main forming machine body
    450 mm H steel
    16
    Control system
    PLC control
    Can be customized according to customer requirements or drawings
    Quantity(sets)1 - 1>1
    Lead time (days)15To be negotiated

    Features of Floor Decking Roll Forming Line:

    The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

    We can also supply the customized machines.

    Applications of Floor Decking Roll Forming Line:

    The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.

    Process Flow of Floor Decking Roll Forming Line:

    Uncoiler -Feeding -Straightening-Roll Forming -Cutting-Exit Rack

    Machine Configurations of Floor Decking Roll Forming Line:

    1.Manual De-coiler or Hydraulic De-coiler 5t (optional)

    2.Feeding device

    3.Straightenting device

    4.Roll Forming Machine

    5.Cutting device

    6.PLC control system

    7.Exit Rack or Pneumatic Auto Stacker 6m or 12m (Optional)

    8.Hydraulic Station

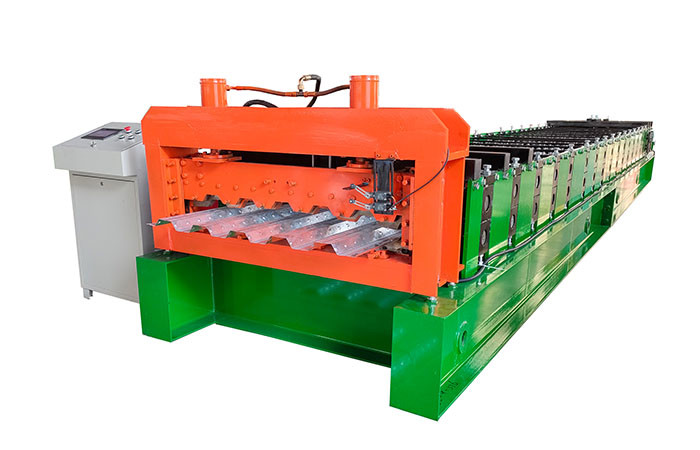

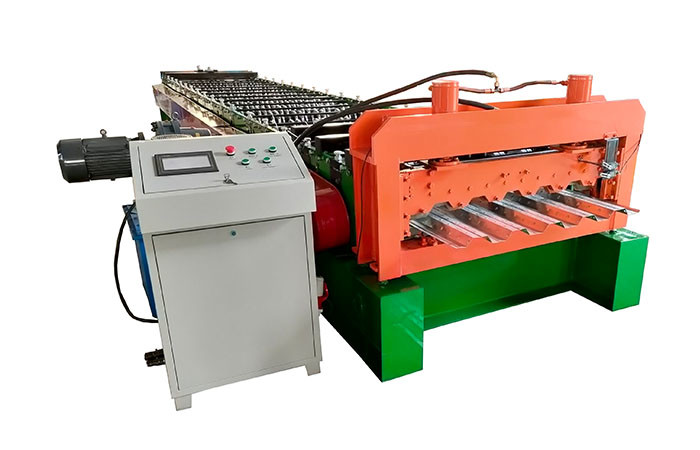

    Machine pictures:

    Thickness 0.8-1.2mm Floor Deck Roll Forming Machine with 24 rows Roller stationThickness 0.8-1.2mm Floor Deck Roll Forming Machine with 24 rows Roller stationThickness 0.8-1.2mm Floor Deck Roll Forming Machine with 24 rows Roller station

    Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
    When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!

    Our Service:

    - Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week

    - Reply within 24 hours

    - Provide relevant product information

    - Answer questions if request

    - Give technical suggestion

    ² Provide After-sales service 24hr × 7days per week

    - Test the machine before shipment

    - Provide technical guidance relate to use the machine

    - Supply one-year warranty period for the machine

    - Provide the spare parts at cost price after warranty period

    - Collect the feedback for the machine working

    - Provide long-term technical assistance.
