    Self Lock Standing Seam Roof Sheet Roll Forming Machine With Hydraulic Cutting

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 400
    Certification : ISO,CE
    Price : 8500
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    Self Lock Standing Seam Roof Sheet Roll Forming Machine With Hydraulic Cutting

    Color Steel Self Lock Standing Seam Roof Sheet Panel Cold Roll Forming Machine


    Automatic Color Steel 490 Self Lock Standing Seam Roof Sheet Panel Cold Roll Forming Machine
    Material thickness0.3-0.8mm
    Diameter of shaft(solid shaft)70mm
    Material of shaft (solid shaft)(high grade) 45# Steel, quenching and tempering treatment
    Material of roller45# steel polished and coated with chrome HRC55-60°
    Reducer8# cycloid reducer (high grade)
    Cuttinghydraulic cutting after roll forming
    Control systemPLC Frequency Control System with touch screen
    Quantity(sets)1 - 1>1
    Lead time (days)15To be negotiated

    Snap lock roof sheet metal machine

    One peculiar feature that makes the self-lock distinct from the rest is that there is no direct nailing on the roofing sheets
    thereby giving it an elegant look and leaves one wondering how on earth the fastening was carried out. It is suitable for all
    residential buildings and is gaining grounds in the Prices: Depends on your request. You may request for a quote
    - Standing seam metal machine production line process
    Uncoiler straightener 2 in 1 → Guide device → roll forming machine →shear device (including knife)→ finished product rack

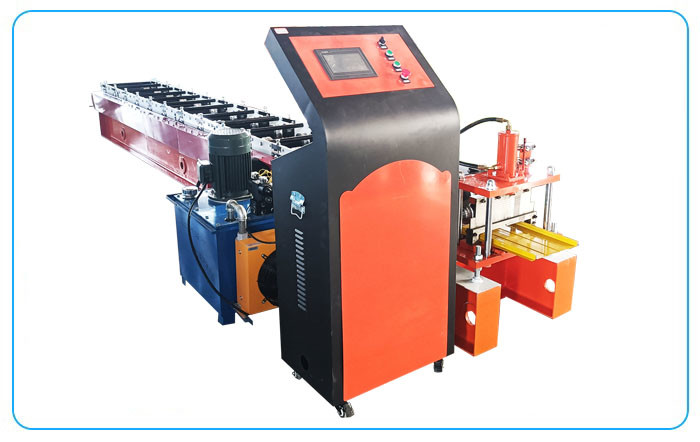

    Machine pictures:

    Self Lock Standing Seam Roof Sheet Roll Forming Machine With Hydraulic CuttingSelf Lock Standing Seam Roof Sheet Roll Forming Machine With Hydraulic CuttingSelf Lock Standing Seam Roof Sheet Roll Forming Machine With Hydraulic Cutting

    Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
    When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!

    Our Service:

    - Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week

    - Reply within 24 hours

    - Provide relevant product information

    - Answer questions if request

    - Give technical suggestion

    ² Provide After-sales service 24hr × 7days per week

    - Test the machine before shipment

    - Provide technical guidance relate to use the machine

    - Supply one-year warranty period for the machine

    - Provide the spare parts at cost price after warranty period

    - Collect the feedback for the machine working

    - Provide long-term technical assistance.
