    Servo Drive Cutting Roller Shutter Door Slat Roll Forming Machine 12 Steps

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 140
    Certification : ISO,CE
    Price : $6000
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

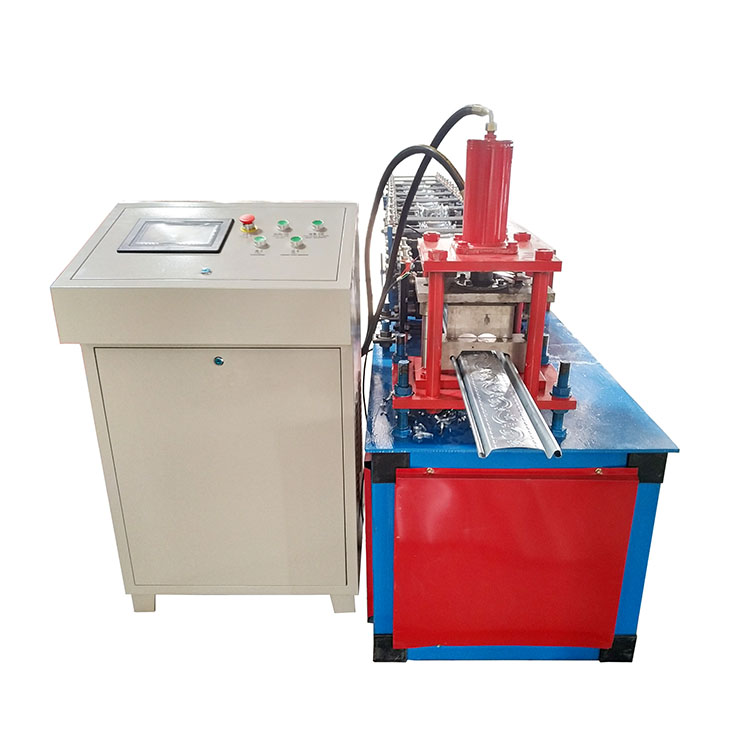

    Servo Drive Cutting Roller Shutter Door Slat Roll Forming Machine 12 Steps

    Servo Drive Cutting Roller Shutter Door Slat Roll Forming Machine shutter door strips making machine


    Rolling Shutter Door Roll Forming Machine is the machine especially for producing the rolling shutters slat, which is used for the rolling shutters door. It can continuously uncoiling, feeding, punching, roll forming and cutting to length. The whole line adopts PLC controlling system. It can run full automatically. The machine can be customized as different customer is asking for different profile dimensions.


    Servo Drive Cutting Roller Shutter Door Slat Roll Forming Machine
    Metal material thickness
    0.7-1.2mm
    Metal material width
    166mm
    Roller Stage
    12 forming rows
    Roller Material
    Gcr15 steel with chromium plate
    Diameter of shaft
    Φ50mm
    Material of cutting blade
    Cr12Mov, Quenched treatment 58℃-60℃
    Main Structure of the Machine
    Steel plate welding
    Side Panel of Machine
    25mm
    Cutting Type
    Servo Drive Hydraulic Cutting
    Motor power
    5.5 kw Shanghai Lichao
    Hydraulic power
    5.5 kw with cooling device
    Productivity
    0-25m/min
    Plc control system
    Delta or as customer require

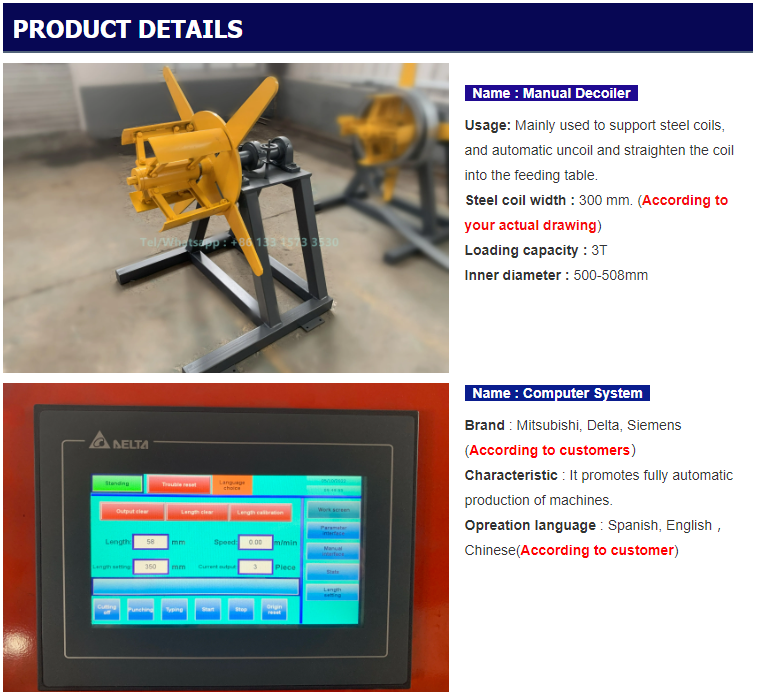

    Machine Components
    No.NameQTY
    1Manual uncoiler1 set
    2Feeding and leveling device1 set
    3Roll forming system1 set
    4Hydraulic punching and cutting1 set
    5Product support frame1 set
    6PLC Control System1 set

    3. roll forming machine company profiles

    Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


    The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

    4. Comapny advantage:

    In Botou, we start the pressure roll forming machine export business from 2008.

    As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.

    Provide best price,good quality and fast delivery.

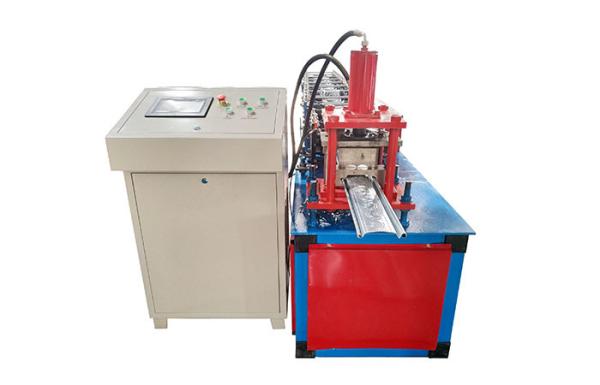

    Machine pictures:


    PACKING & DELIVERY

    A.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. B.Rollers
    and shafts are covered with anti-rust oil. C.PLC control system and motor pump are packed with waterproof paper and plastic film.
    D.Spare parts in a carton box. E.Manual decoiler was nude packing. F.The output-table put into a carton box. G.If the machine is
    too long, we will divide it into two parts and pack them in one package with steel wire. H.Fit for ocean shipping.
