Customized Color Metal Sheet Roofing Roll Former , Touch Screen
Metal Roll Forming Equipment
1. Product brief
We are professional manufacturers, product quality and price are
guaranteed(Other design of tile making roll forming machine, we
also could customize to you, just share us your details about: )
1)Your details design of tile making roll forming machine.
2)Raw materials of tile making roll forming machine.
3)Thickness of tile making roll forming machine.
2. Our advantage
- 1. We are a factory with nearly 20 years experiences on Roll
Forming Machines;
2. We have our own research and development team with strong
ability to solve all kinds of problems;
3. We have stable raw material suppliers to ensure the best quality
and on time supplying with low cost;
4. We have more than 20 technicians that can go abroad for the
after-sale service;
5. We have more than 100 kinds and models products for your choice,
you can find the most kind of roll forming machines from us;
6. We have Laser Cutting Machine, CNC Machining Center, Polishing
Line, Painting Line, etc. advanced production equipments to ensure
the quality of each part and the best appearance of our machines;
7. Our machines have reached the International Inspection
Standards;
8. We have got the ISO9001:2008 Certificate and CE Certificate;
9. We are always waiting to serve you 7 days a week and 24 hours a
day.
3. specification of Sheet Metal Tile Roll Forming Machine
| No. | Type | Specification |
1 |
Row Material | Type | Colored steel plate, Galvanized board, Aluminum plate ect |
| Feeding width | 122mm or According to client’s requirement |
| Thickness | 0.7-0.8mm |
2 |
Main Body | Forming roller station | 12 Stations |
| Straight roller station | 3 Stations ( Up layer 2 rollers , down layer 3 rollers ) |
| Diameter of shaft | 40mm |
| Shaft material | High grade 45# steel |
| Roller material | High grade 45# steel , hard treatment and polishing ( plated chrome
on surface ) |
| Main body frame | Whole set of square pipe |
| Frame thickenss | 14 mm |
| Working speed | 8-15 m/min |
| Size (L*W*H) | About 6800*850*1310mm |
| Weight | About 2.5 tons |
3 |
Power | Motor power | 3 kw |
| Hydraulic power | 3 kw |
| Voltage | 380V 50Hz 3phases or Customerization |
| Drving Way | By Gear |
4 |
PLC Control System | Language | English and Chinese |
| Brand Of PLC | Delta brand ( Touch Screen ) |
| Operation | Manual and Automatic ( Two Type ) |
| Transducer | Delta brand |
5 |
Cutting Device | Cutting Type | Hydraulic Cutting |
| Blade of Cutting | Cr12 , quenching treatment |
| Cutting Tolerance | ± 1mm |
4. Payment terms and after-sale service:
1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 30 working days.
4) Guarantee period: 12 months limited warranty starting from date
of delivery. Shipping cost for parts to be replaced during warranty
period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve,
protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach
you how to install and us the machine, and also train your
workers/technician face to face.
2. Without visiting, we will send you user manual and CD to teach
you to install and operate.
5. FAQ
5.1. How can we be assured that you will deliver us quality machine
with spare parts?
A:1. Customers to send the technical people to our factory for
checking the quality.
5.2.We can send the technicians to the buyer`s factory for the
installation of the machine.
A: 30% as the deposit by T/T in advance, 70% as the balance payment
by T/T after your inspect the machine well and before delivery. Of
course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45
days for delivery.
5.3. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled
technicians available across the world.
5.5. Do you sell only standard machines?
A: No, most of our machines are built according to customers
specifications, using top brand components.
5.5. What will you do if the machine is broken?
A: We provide 18 months free warranty and free technical support
for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace
the broken parts freely, but you need pay the express cost by
yourself. If it is beyond the warranty period, we can negotiate to
solve the problem, and we supply the technical support for the
whole life of the equipment.
5.6. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have
rich experience in transporting.
5.7. How to visit your company?
A: 1) Fly to Beijing airport, By high speed train From Beijing Nan
to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

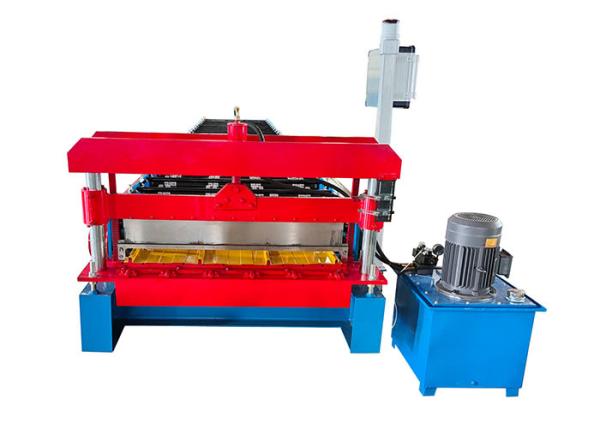

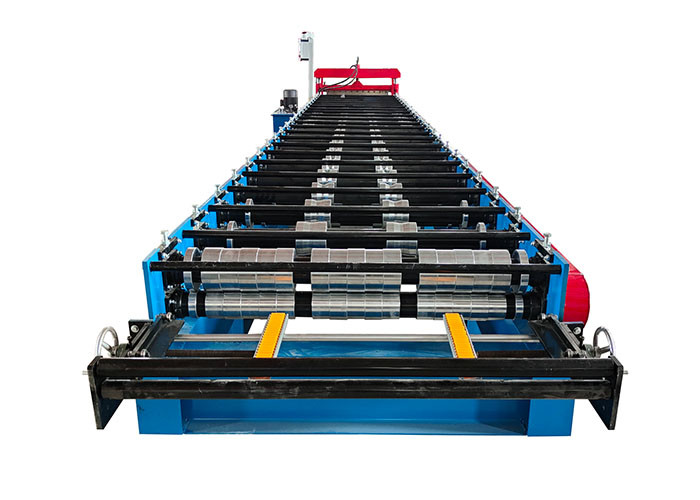

6. Our machine pictures for reference.
