    ISO Energy Saving Rolling Shutter Slats Roll Forming Machine 8-15m/Min

    Ask Lasest Price
    Brand Name : ST
    Model Number : 140-88
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    ISO Energy Saving Rolling Shutter Slats Roll Forming Machine 8-15m/Min

    Steel Roller Shutter Door Roll Forming Machine for Metal Rolling Shutter Slats Making

    1. Steel Roller Shutter Door Roll Forming Machine for Metal Rolling Shutter Slats Making

    --- High Material Quality : Reinforced steel machine body with laser cut and extra strengthened design for life long-running, heat treated rollers to 58 HRC hardness

    --- Modern Design: Compact design, fast and automatic production with minimum human interference.

    --- Energy-Saving: efficient, reliable, and simple to operate, precise production for shutter slats. All in all, saving your energy.

    --- Long Life Part: Our roll forming machines are under 2 years full warranty and life-long technical assistance and spare parts supply.

    --- Fast And Quiet Production: PLC control operated, whenever you need door profiles, just start the machine and run the rollers.

    2. Steel Roller Shutter Door Roll Forming Machine for Metal Rolling Shutter Slats Making Parameters:

    Total power
    2.2 – 7.5kw
    Speed
    8 – 20m/min
    Dimension (LxWxH)
    (6-8)x(1.2-1.4)x1.4m
    Weight of machine
    3 – 4 tons
    Roller station
    12 – 18
    Material thickness
    0.6 – 1.2mm (G300-G550)
    Material width
    100 – 200mm

    Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack

    Flow chart:

    Product Application

    This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
    The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

    Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
    B. Without visiting, we will send you user manual and video to teach you to install and operate.
    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    3. FAQ

    1. How to get the quotation?
    1.1.Give me the profile drawing and thickness,this is the important.
    1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
    1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.


    2. Do you have after sales support?
    Yes, we are glad to support advice. Our technicians available across the world.

    3. Why your price is higher than others?

    As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.

    4. What can we do if the machine broken?
    The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.

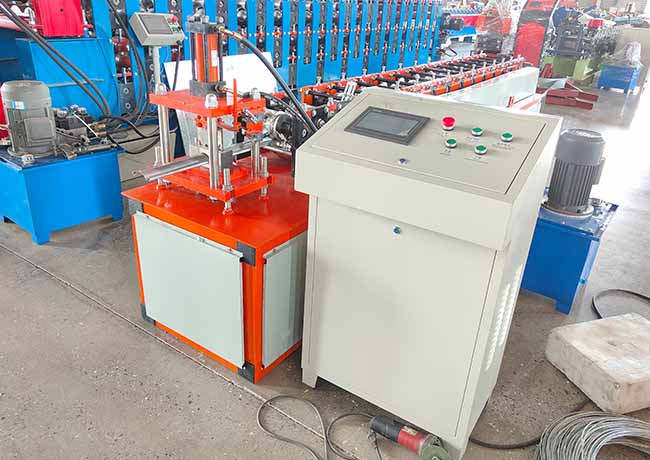

    4 Machine pictures
