width 140mm Color Steel Roller Shutter Door Roll Forming Machine Slat Machine 4kw

    Buy cheap width 140mm Color Steel Roller Shutter Door Roll Forming Machine Slat Machine 4kw from wholesalers

    Buy cheap width 140mm Color Steel Roller Shutter Door Roll Forming Machine Slat Machine 4kw from wholesalers
    • Buy cheap width 140mm Color Steel Roller Shutter Door Roll Forming Machine Slat Machine 4kw from wholesalers
    • Buy cheap width 140mm Color Steel Roller Shutter Door Roll Forming Machine Slat Machine 4kw from wholesalers
    • Buy cheap width 140mm Color Steel Roller Shutter Door Roll Forming Machine Slat Machine 4kw from wholesalers
    • Buy cheap width 140mm Color Steel Roller Shutter Door Roll Forming Machine Slat Machine 4kw from wholesalers

    width 140mm Color Steel Roller Shutter Door Roll Forming Machine Slat Machine 4kw

    Ask Lasest Price
    Brand Name : ST
    Model Number : 140-88
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    width 140mm Color Steel Roller Shutter Door Roll Forming Machine Slat Machine 4kw

    Manufacturer of Color Steel Roller Shutter Door Roll Forming Machine Slat Machine


    1. Manufacturer of Color Steel Roller Shutter Door Roll Forming Machine Slat Machine


    ---- Machines rolling shutter door for post, base and Roll-up door.

    ---- A roller shutter, coiling door, roller door or sectional overhead door is a type of door or window shutter consisting of many horizontal slats (or sometimes bars or web systems) hinged together. The door is raised to open it and lowered to close it.

    ---- Rolling shutter door machine consist of 3 ton manual decoiler, forming machine with post cut, hydraulic staion, plc controller, run out table


    2.Manufacturer of Color Steel Roller Shutter Door Roll Forming Machine Slat Machine Parameters:


    1

    Power Requirement


    Voltage380v/3ph/50hz
    Main Motor power3kw
    Cutter power3kw
    2Forming speed8-15m/min
    3Forming stations12
    4Thickness of structure16mm
    5Forming shaft diameter70mm
    6Sleevegalvanized pipe with color coating
    7ScreenText screen /touch screen
    8Type of cuttingRoll formed and length-set cutting
    9.Control systemPLC control
    10.Install dimension(depend on the final design)4.6m×1.5m×1.2m
    11.Total weight (Approx)1.5T


    Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack


    Flow chart:

    Product Application

    This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
    The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

    Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
    B. Without visiting, we will send you user manual and video to teach you to install and operate.
    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    3. FAQ

    1. How to get the quotation?
    1.1.Give me the profile drawing and thickness,this is the important.
    1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
    1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.


    2. Do you have after sales support?
    Yes, we are glad to support advice. Our technicians available across the world.

    3. Why your price is higher than others?

    As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.

    4. What can we do if the machine broken?
    The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.

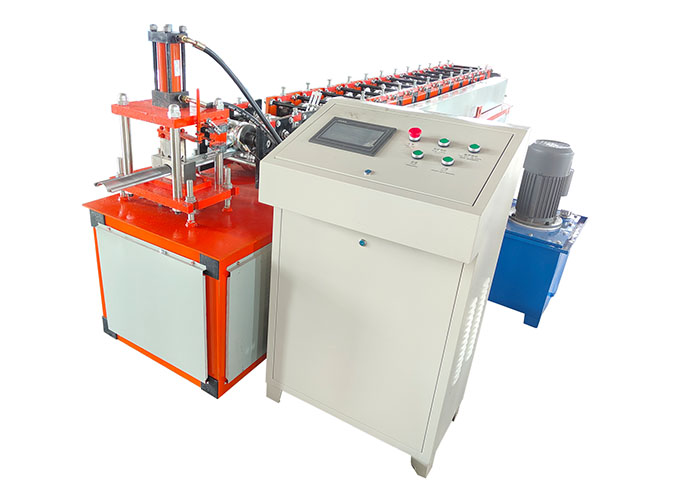

    4 Machine pictures
