    Roll Up Rolling Shutter Door Slats Roll Forming Machine 380V 60HZ 3PH

    Ask Lasest Price
    Brand Name : ST
    Model Number : 140-88
    Certification : CE, ISO
    Price : contact the sales,she will give you the best offer
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 30-40 work days
    • Product Details
    • Company Profile

    Roll Up Rolling Shutter Door Slats Roll Forming Machine 380V 60HZ 3PH

    Roll-up Rolling Door Slat Roller Shutter Door Roll Forming Machine Production Line


    1. Roll-up Rolling Door Slat Roller Shutter Door Roll Forming Machine Production Line


    A roller shutter door forming machine is an automatic rolling machine to make shutter door slats. Roll up door roll forming machine is fully automatic and easy to operate to form shutter slats.

    It consists of one decoiler, sheet guiding equipment, roll forming section, PLC control system, Hydraulic cutting, collection table.

    Their main advantages are beautifully customized designs, easy and stable operation with strong body frame.


    2.Roll-up Rolling Door Slat Roller Shutter Door Roll Forming Machine Production Line Parameters:


    1.
    Size4000*900*1400mm
    2.Weight1500 KGS
    3.Motor Power4 KW
    4.Hydraulic Power3 KW
    5.Volage380V/60HZ/3PH
    6.Effective Width85mm
    7.Material Width136mm
    8.Forming Steps12 steps
    9.Forming Speed8-12m/min
    10.Thickness for common use and test0.8mm
    11.Tolerance± 2mm


    Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack


    Flow chart:

    Product Application

    This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
    The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

    Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
    B. Without visiting, we will send you user manual and video to teach you to install and operate.
    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    3. FAQ

    1. How to get the quotation?
    1.1.Give me the profile drawing and thickness,this is the important.
    1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
    1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.


    2. Do you have after sales support?
    Yes, we are glad to support advice. Our technicians available across the world.

    3. Why your price is higher than others?

    As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.

    4. What can we do if the machine broken?
    The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.

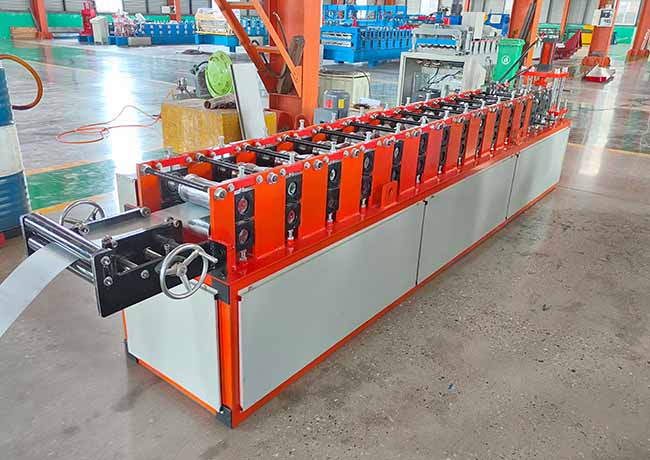

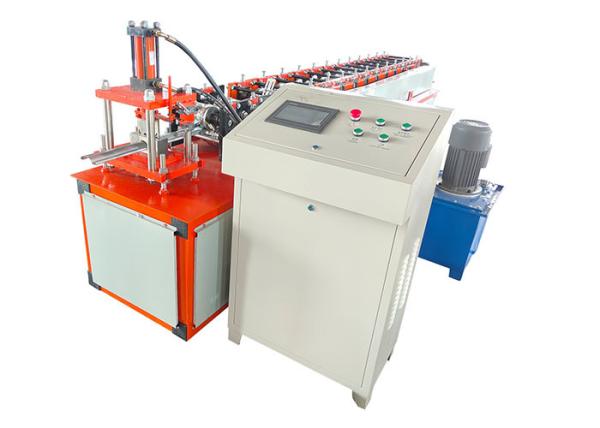

    4 Machine pictures
