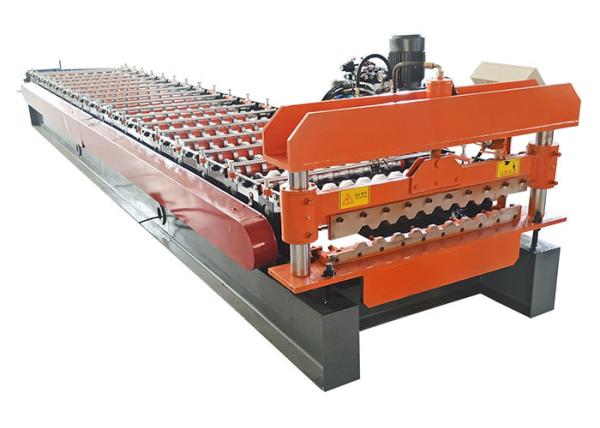

    380v 50hz Roofing Sheet Roll Forming Machine With Detla System

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : 680
    Certification : ISO,CE
    Price : Contact us get the best price
    Payment Terms : L/C,T/T
    Supply Ability : 20sets/month
    Delivery Time : 40-60 days
    • Product Details
    • Company Profile

    380v 50hz Roofing Sheet Roll Forming Machine With Detla System

    Roof Sheet Making Machine Trapezoidal Metal Roofing Sheet Roll Forming Machine

    Essential details
    Applicable Industries:
    Manufacturing Plant, Construction works
    Showroom Location:
    Philippines
    Condition:
    New
    Type:
    Tile Forming Machine
    Tile Type:
    Colored Steel
    Use:
    ROOF
    Production Capacity:
    15 m/min
    Place of Origin:
    Hebei, China
    Voltage:
    380V 50Hz 3phases or as your requirement
    Dimension(L*W*H):
    8*1.2*1.3
    Weight:
    4500 kg
    Warranty:
    2 years
    Key Selling Points:
    Long Service Life
    Rolling thinckness:
    0.3-0.8mm
    Feeding width:
    1200mm
    Machinery Test Report:
    Provided
    Video outgoing-inspection:
    Provided
    Marketing Type:
    New Product 2022
    Warranty of core components:
    2 years
    Core Components:
    PLC
    Product name:
    roll forming machine
    Usage:
    Roofing Accessories
    Raw material:
    PPGI PPGL GI GL
    Roller material:
    45#steel Chrome Plated
    Shaft material:
    45# St
    Control system:
    PLC(detla) System
    Color:
    Blue
    Cutting type:
    Hydraulic Cutting
    Cutter material:
    Cr.12
    Motor brand:
    China Famous Brand

    Machine is design for color steel roof sheet roll forming,the machine working speed is about 15m per minute,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table,total power is 8kw.

    Machine components Technical parameters
    Decoiler 5 or 10T,manual or hydraulic powered.

    Main forming machine

    16 stations forming rollers,chain drive.shaft diameter 70mm
    Hydraulic pump 4kw
    Control box Delta PLC and frequency.
    Run out table Manual operate ,Height adjustable
    Tool box

    For operate tool and spare parts.

    Machine Components
    No. Name QTY
    1 Manual uncoiler 1 set
    2 Feeding and leveling device 1 set
    3 Roll forming system 1 set
    4 Hydraulic punching and cutting 1 set
    5 Product support frame 1 set
    6 PLC Control System 1 set

    Terms:

    1.Delivery:in stock
    2.Package:export standard package for container
    3.Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)
    4.Delivery date:within 30 working days after receiving deposit
    5.Products Warranty:12 month,and we will provide the technical support for whole life of the equipment.


    Our Services

    A:- What service can you provide before order?
    - About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price,
    payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our
    warmest welcome.
    B:- Can you finish the machine during the delivery time?
    - We will finish the machine in time according to determined lead time.
    C:- Can you provide some spare parts?
    - Yes, of course. The quick-wear parts are sent to you together with the machine.
    D:- What is the after- sale service?
    - About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost
    including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
    The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the
    first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per
    day to maintain the machine. And the components are not free, if you need to get it from us.
    E:- Any other service?
    - We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
    It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange
    accommodation during that time.
    F:- Can you accept OEM?
    - We can accept OEM.
    G:- Any certification:
    - Yes, we have CE TUV BV certification.
