    Long Sheet Roof Panel Curving Machine Arched Trapezoidal Making Roll Forming

    Ask Lasest Price
    Brand Name : SHITONG
    Model Number : Tr5
    Certification : CE/ISO9001
    Price : 5500$
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Long Sheet Roof Panel Curving Machine Arched Trapezoidal Making Roll Forming

    long curving roof sheet arched trapezoidal making roll forming machine
    Essential details
    Applicable Industries:
    Manufacturing Plant, Machinery Repair Shops
    Showroom Location:
    Egypt
    Condition:
    New
    Type:
    Tile Forming Machine, Curving Former Machine
    Tile Type:
    Steel
    Use:
    ROOF, curving
    Production Capacity:
    15m/min
    Place of Origin:
    Hebei, China
    Brand Name:
    Xingbo
    Voltage:
    380v,50hz,3ph
    Dimension(L*W*H):
    2.5x1.2x1.8
    Weight:
    2200 kg
    Warranty:
    1 year, 12months
    Key Selling Points:
    Long Service Life
    Rolling thinckness:
    Other
    Feeding width:
    Other
    Machinery Test Report:
    Provided
    Video outgoing-inspection:
    Provided
    Marketing Type:
    New Product 2021
    Warranty of core components:
    1 Year
    Core Components:
    PLC
    Color:
    make as request
    After serivce:
    Engineer installing
    Place of origin:
    Botou Hebei
    Certicated:
    ISO9001:2008 Ce Bv
    Payment:
    T/T,L/C
    Mould:
    CR12
    Control:
    Detla

    Main parameters

    No.main parameter of roll forming machine
    1Suitable to processColor steel plate
    2Width of the plate1200mm
    3Rollers4rows
    4Dimensions3.0*1.6*1.5m
    5Power4+3kw
    6Thickness of the plate0.3-0.8mm
    7Productivity15-20m/min
    8Diameter of the rollerΦ70mm
    9WeightAbout 2T
    10Voltage380V 50Hz 3phases
    11Rolling materialCarbon Steel 45#
    12Material of the cutting plateCr12
    13Processing precisionWithin 1.00mm
    14Control systemPLC control
    All technical parameters can be changed, according to user's need.

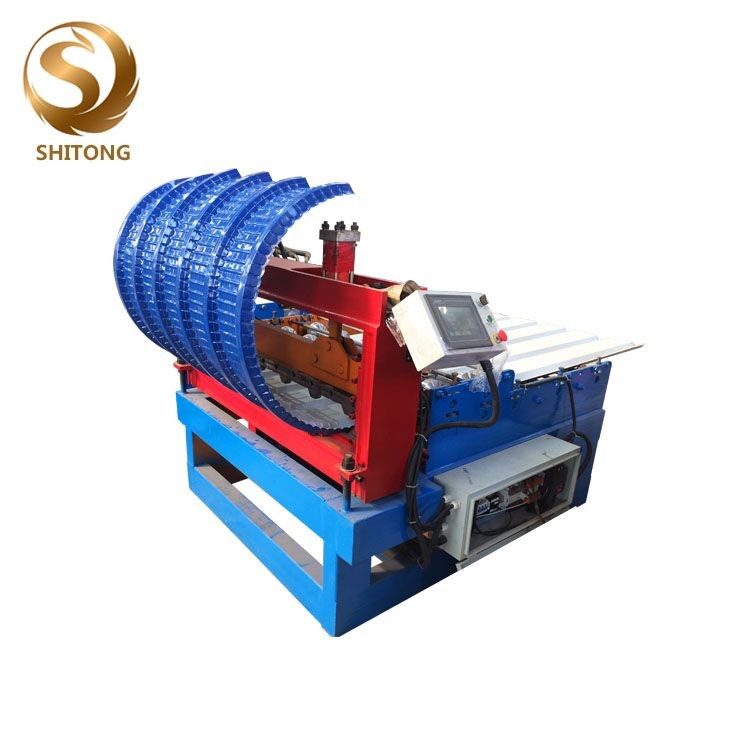

    MAIN MACHINE PICTURES
    Long Sheet Roof Panel Curving Machine Arched Trapezoidal Making Roll FormingLong Sheet Roof Panel Curving Machine Arched Trapezoidal Making Roll FormingLong Sheet Roof Panel Curving Machine Arched Trapezoidal Making Roll Forming

    Why choose this curving machine?

    1. Certificate: ISO 9001, CE,
    2. Lifetime services
    3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
    4. Introduced Mitsubishi PLC with touch screen to machine controll system.
    5. One worker operation (minimum)
    6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
    7. Product cut-to-length.
    8.Technician overseas installing and training available


    Item
    Specification
    MterialThickness (mm)0.4-0.7
    Yield strength (mpa)235-345
    Roller material45#Chrome steel
    Motor powerAabout 3kw
    Control modeDelta PLC

    Our company provides design layout diagrams free of charge, forming designers go to Germany to study every year, and plan the machine scheme exclusively for you according to your product size

    Payment30% T/T in advance
    Packagingstandard seaworthy packing
    Deliverywithin 25 days
    Guarantee18 months free service/ pay service all the machine life
    Installation and training

    If buyers visit our factory and check the machine,

    we will teach you how to install and use the machine,

    and also train your workers/technician face to face.
    Without visiting,we will send you user manual and video

    to teach you to install and operate.
    If buyer needs our technician to go to your local factory,

    please arrange board and lodging and other necessary things.
